Single Function Time Delay Relay, Octal, On Delay, 1 Functions 24V AC/DC, DPDT MPN:TR-50228-12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5234433
Single Function Time Delay Relay, Octal, On Delay, 1 Functions 24V AC/DC, DPDT

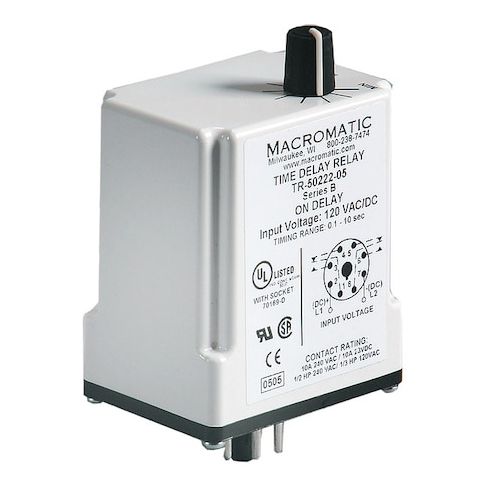

The Macromatic Single Function Time Delay Relay is a versatile and reliable timing solution for a wide range of applications. This octal-shaped relay features a DPDT contact form and can handle 10A of current at 240V AC or 30V DC. With a minimum time setting of 3 seconds and a maximum setting of 5 minutes, it's ideal for delayed start or timed shutdown applications in industrial control systems, HVAC, and lighting control. Its compact design and plug-in mounting style make it easy to integrate into existing systems, providing a reliable and efficient timing solution for various industries and applications.
Top product features:
- Octal base shape for compact installation
- On delay function with adjustable time setting from 3 seconds to 5 minutes
- DPDT contact form for reliable switching of two independent circuits
Top product applications:
- Time delay for industrial control systems
- Automated lighting control systems
- Power factor correction applications
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 24V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 24V AC/DC, Minimum Time Setting 3 sec, Maximum Time Setting 5 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.25
- Package Width: 2.50
- Package Height: 1.88
- Package Weight: 0.24
