Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC/DC, DPDT MPN:TR-50222-12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5234336
Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC/DC, DPDT

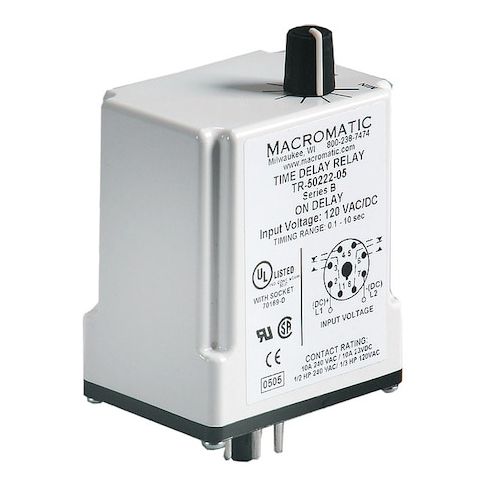

The Macromatic Single Function Time Delay Relay is a versatile octal-shaped device ideal for a wide range of applications, including industrial automation, process control, and machine safety. Its on-delay function allows for precise timing, while its DPDT contacts provide reliable switching capabilities. With a minimum time setting of 3 seconds and a maximum setting of 5 minutes, this relay offers flexible delay times to suit various needs. Its compact design and plug-in mounting style make it easy to integrate into existing systems, providing a reliable and efficient solution for applications requiring precise timing and switching control.
Top product features:
- Adjustable time delay from 3 seconds to 5 minutes
- DPDT contact form for versatile switching applications
- On delay function allows for timed switching operations
Top product applications:
- Control circuits for air conditioning and heating systems
- Automotive alarm systems
- Industrial control systems for manufacturing equipment
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 3 sec, Maximum Time Setting 5 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.25
- Package Width: 2.50
- Package Height: 1.88
- Package Weight: 0.23
