Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC/DC, DPDT MPN:TR-50222-14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5234284
Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC/DC, DPDT

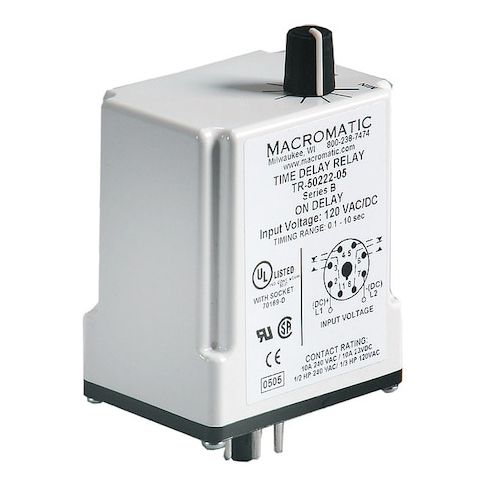

The Macromatic Single Function Time Delay Relay is a versatile and reliable solution for applications requiring precise timing control. This Octal-shaped relay features a DPDT configuration, allowing for flexible switching options. With a 10A current rating and 120V AC/DC compatibility, it can handle a variety of loads. The on-delay function enables delayed activation, ideal for applications such as lighting control, security systems, and industrial automation. The adjustable potentiometer allows for customized timing settings, from 15 seconds to 15 minutes. Its compact design and IP20 rating make it suitable for use in a range of environments.
Top product features:
- Adjustable Time Delay
- DPDT Contact Form
- On Delay Function
Top product applications:
- Time control for industrial automation processes
- Machine startup sequencing
- Control of lighting systems
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 15 sec, Maximum Time Setting 15 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.00
- Package Height: 4.20
- Package Weight: 0.25
Product info last updated on March 2, 2026 8:04pm UTC
Category: Industrial Electrical Controls and Automation
