Multifunction Time Delay Relay, Square, 4 Functions 12 to 125V DC, 24 to 240V AC, SPDT MPN:THR-3836U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5126545

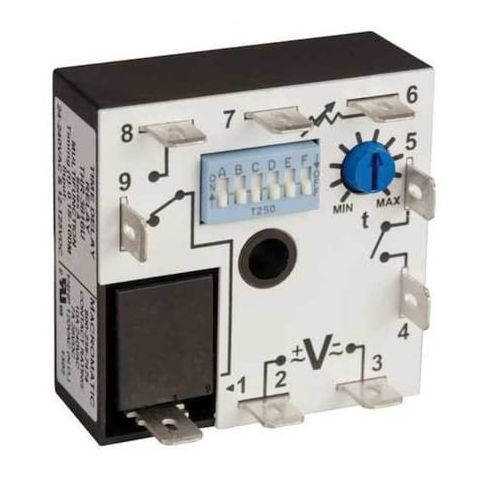

Multifunction Time Delay Relay, Square, 4 Functions 12 to 125V DC, 24 to 240V AC, SPDT
The Macromatic Multifunction Time Delay Relay is a versatile and reliable timing solution for a variety of applications. This compact relay can be used in control systems, automation, and industrial settings to control and monitor equipment, machinery, and processes. With four delay functions, including flasher, single shot, and watchdog, users can customize the relay to meet their specific needs. The relay's adjustable dip switch allows for easy programming, and its SPDT contact form provides reliable switching. Its wide voltage range and high current rating make it suitable for use in a range of environments, from 12V to 240V AC/DC.
Top product features:
- Adjustment Method: Dip Switch
- 4 Delay Functions: Flasher OFF 1st, Flasher On 1s, Single Shot Falling Edge, Watchdog
- SPDT Contact Form
Top product applications:
- Automotive applications for flasher lights and turn signals
- Security systems for delayed alarm activation and deactivation
- Industrial control systems for process automation and monitoring
Multi-Function Encapsulated Timing Relay, Adjustment Method Dip Switch, Base Shape Square, Coil Voltage 12 to 125V DC, 24 to 240V AC, Contact Form SPDT, Contact Rating (AC) 24 A @ 240V AC, Contact Rating (DC) 12 A @ 125V DC, Current Rating 24 A, Number of Delay Functions 4, Delay Function Flasher OFF 1st, Flasher On 1s, Single Shot Falling Edge, Watchdog, Electrical Connection Screw Terminal, Input Voltage 12 to 125V DC, 24 to 240V AC, Minimum Time Setting 0.1 sec, Maximum Time Setting 100 min
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 2.20
- Package Height: 1.30
- Package Weight: 0.20
Product info last updated on March 13, 2026 4:38pm UTC
Category: Industrial Electrical Controls and Automation
