Time Delay Relay, Octal, 6 Functions 100 to 240V DC, 24 to 240V AC, DPDT MPN:TAA2U-G
Time Delay Relay, Octal, 6 Functions 100 to 240V DC, 24 to 240V AC, DPDT

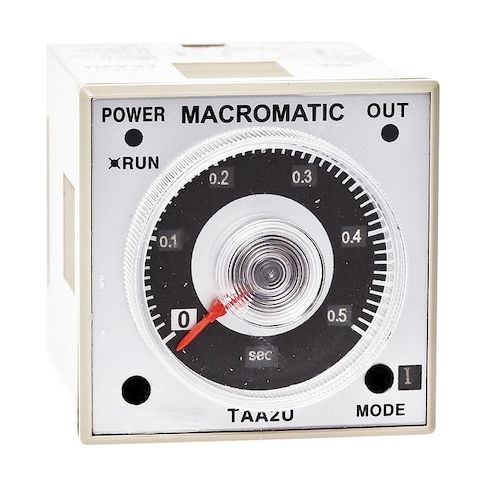

The Macromatic Time Delay Relay is a versatile and reliable device that offers six distinct delay functions, including ON Delay, ON Delay with Instantaneous Contact, One Shot, Interval ON, Flicker Mode, and Flicker Mode with Instantaneous Contact. Suitable for use in a wide range of applications, this relay can be powered by either DC or AC voltage, making it a convenient choice for various industries. Its compact octal base shape and adjustable dial make it easy to integrate into existing systems. With a maximum time setting of 100 hours and a minimum of 0.1 seconds, this relay provides precise control and flexibility.
Top product features:
- Time Delay Relay has 6 different functions for delayed switching and timing control.
- Time Delay Relay has a dial-adjustable delay time setting range from 0.1 sec to 100 hours.
- Time Delay Relay features a DPDT contact form with a 5A @ 250V rating for reliable switching.
Top product applications:
- Motor control systems
- Power supply backup systems
- Automated lighting control systems
Time Delay Relay, Adjustment Method Dial, Base Shape Octal, Coil Voltage 100 to 240V DC, 24 to 240V AC, Contact Form DPDT, Contact Rating (AC) 5 A @ 250V, Current Rating 5 A, Number of Delay Functions 6, Delay Function Flicker Mode, Flicker Mode with Instantaneous Contact, Interval ON, ON Delay, ON Delay with Instantaneous Contact, One Shot, Electrical Connection Pin, Input Voltage 100 to 240V DC, 24 to 240V AC, Minimum Time Setting 0.1 sec, Maximum Time Setting 100 hr, Number of Pins 11
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 2.30
- Package Height: 2.70
- Package Weight: 0.28
Product info last updated on January 23, 2026 9:44pm UTC
Category: Industrial Electrical Controls and Automation
