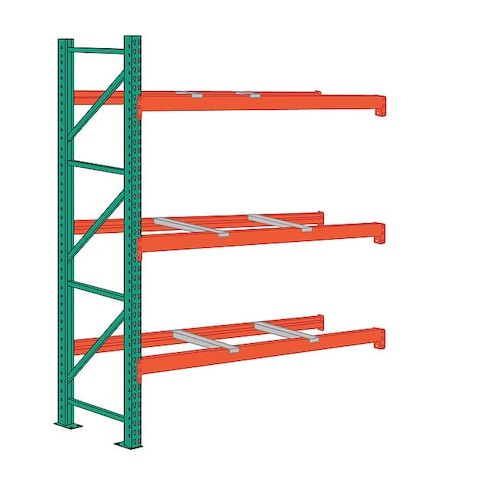

Teardrop, 12 ft H, 108 in W, 48 in D, Orange/Green MPN:97AFB120048144
Teardrop, 12 ft H, 108 in W, 48 in D, Orange/Green
The Teardrop Pallet Rack Add-On Unit is a versatile and reliable storage solution for warehouses and distribution centers. With its sturdy 14-gauge steel construction and powder-coated finish, this unit can withstand heavy loads and harsh environments. Its compact 48-inch depth and 12-foot height make it ideal for narrow aisles and tight spaces. The unit features two shelves with a load capacity of 6,140 pounds per shelf, and a total load capacity of 12,280 pounds. Perfect for adding storage capacity to existing pallet racking systems, this unit is perfect for storing heavy machinery, equipment, and inventory in a variety of industries, including manufacturing, logistics, and retail.
Top product features:
- Teardrop connection type allows for easy assembly and disassembly of the pallet rack.
- The pallet rack has a load capacity of 6,140 pounds per shelf.
- The uprights have a load capacity of 20,600 pounds at 36 inches.
Top product applications:
- Warehouse Storage and Organization
- Retail Store Inventory Management
- Industrial Manufacturing Supply Chain
Pallet Rack Add-On Unit, Beam Height 5 in, Beam Step Depth 1 in, Step Beam Beam Style, 14 ga, Overall Depth 48 in, Overall Height 12 ft, Overall Width 108 in, Load Capacity per Shelf 6,140 lb, Add-On Pallet Rack Configuration, 14 ga, Upright Load Capacity @ 36 in 20,600 lb, Whole Unit Load Capacity 12,280 lb, Usable Width 10 ft, Orange/Green, Teardrop Connection Type, Powder Coated, Upright, (6) Beams, Front to Back Supports, Steel, Roll Formed Metal Forming Type, Number of Shelves 2
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 42.00
- Package Width: 120.00
- Package Height: 96.00
- Package Weight: 370.80
Product info last updated on February 6, 2026 3:28pm UTC
Category: Shelving and Racks
