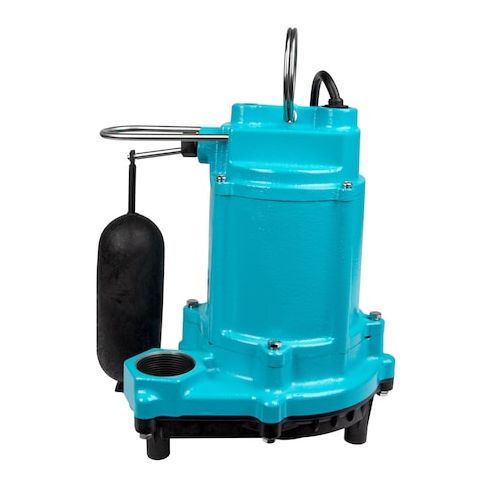

1/3 HP 1-1/2" F Submersible Sump Pump 115V MPN:506807

• The LITTLE GIANT PUMP 506807 is a submersible sump pump in the 6EC-CIA-SFS series for dewatering, water transfer, and light effluent applications. It has a 1/3 hp permanent split capacitor motor, heavy-duty cast iron body and housing, and automatic operation with an integral vertical float switch. This pump is rated for continuous duty and is suitable for clear water or effluent gray water with semi-solids up to 1/2 inch.

  Key Features of the LITTLE GIANT PUMP 506807:


  • 1/3 hp motor: Operates on 115V AC, single phase power at 3450 RPM.
  • Automatic operation: Vertical float switch turns the pump on at 8 to 11 inches and off at 2 to 5 inches.
  • Continuous duty: Designed for ongoing sump and light effluent use.
  • 1-1/2 in. FNPT discharge: Female NPT outlet for pump discharge connection.
  • Flow performance: Delivers 53 gpm at 5 ft. of head, 50 gpm at 10 ft., 42 gpm at 15 ft., and 34 gpm at 20 ft.
  • maximum head is 28 ft.
  • Solids handling: Passes semi-solids up to 1/2 inch.
  • Construction: Cast iron body, motor housing, and volute with a polypropylene base and nylon semi-open impeller.
  • Liquid temperature: Rated for liquids up to 140 degrees F.
  • Power cord: 10 ft. corded electric unit with integral switch connection.
  • Minimum sump pit diameter: 18 inches.
  • Certification: cCSAus.
