Plug-In Utility Pump, 10ft, 8.125 in H, 115V AC MPN:505715
Free Shipping
In Stock
The Little Giant 5-Series Utility Pump is a reliable and efficient solution for various applications. Perfect for homeowners, DIYers, and contractors, this pump is designed for continuous-duty use, making it ideal for light commercial and multipurpose residential applications. With its 1/6 horsepower oil-free motor, it delivers 1500 gph maximum capacity, while its epoxy-coated cast aluminum pump housing ensures strength and heat dissipation. Suitable for water removal, transfer, or circulation, this pump features a removable screen for easy cleaning and multiple switch options for automatic operation, providing flexibility and convenience in a compact and robust design.
Top product features:
- 1/6 horsepower oil-free PSC motor delivers 1500 gph maximum capacity
- Epoxy-coated cast aluminum pump housing provides strength and heat dissipation for consumer and professional use
- Removable screen allows for easy cleaning
Top product applications:
- Light commercial applications
- Multipurpose residential applications
- Water removal, transfer, or circulation in areas where water needs to be removed or transferred

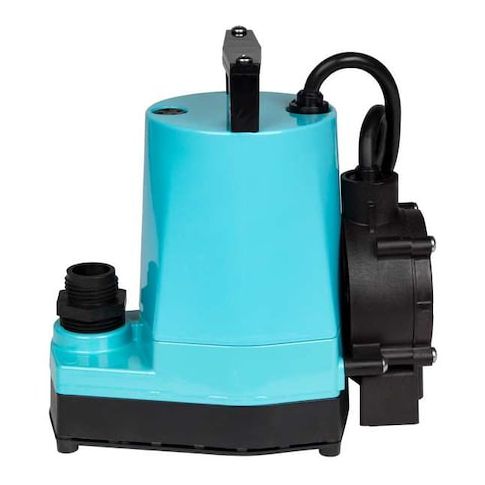

The LITTLE GIANT PUMP 505715 is a corded, plug-in utility pump for clear water removal, transfer, or circulation in residential and light commercial applications. It has a 1/6 hp motor, operates on 115V AC single-phase power, and is rated for continuous duty. The pump is fully submersible, uses a diaphragm switch for automatic operation, and features a cast aluminum housing with a 10 ft cord. It can pump down to 1/16 in. minimum depth and delivers up to 25 gpm with a maximum head of 26 ft.
Key Features of the LITTLE GIANT PUMP 505715:
- Continuous Duty: Built for ongoing operation in water removal, transfer, or circulation applications.
- Flow Capacity: Pumps up to 25 gpm, with 23.3 gpm at 5 ft head and 19.9 gpm at 10 ft head.
- Maximum Head: Handles discharge heights up to 26 ft.
- Low Pump-Down: Pumps water down to 1/16 in. minimum depth for reduced remaining water.
- Motor: 1/6 hp oil-free PSC motor operating at 3,450 RPM and 2.00 A.
- Discharge Connection: 1 in. FNPT discharge
- 3/4 in. GHT listed in included accessories.
- Construction: Cast aluminum body with aluminum motor housing, nylon impeller, and nylon volute.
- Switch Type: Diaphragm switch provides automatic pump actuation.
- Application Media: Designed for clear water with solids up to 1/16 in. diameter.
- Electrical: 115V AC, 60 Hz, single-phase, corded electric with 10 ft power cord.
- Size: Measures 8 1/8 in. high, 7 1/2 in. wide, with a 4 3/8 in. body diameter.
- Listings: cULus.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.60
- Package Width: 6.60
- Package Height: 9.50
- Package Weight: 8.30
