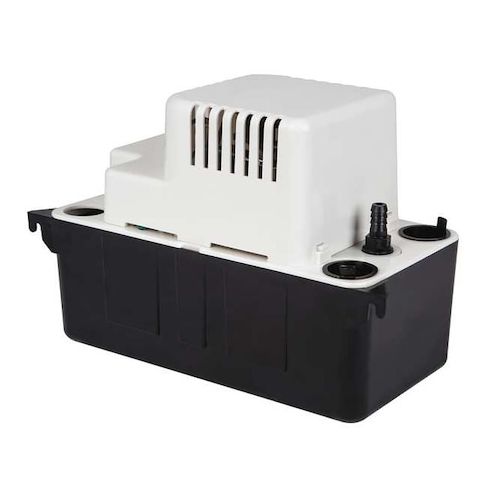

Condensate Pump, 1/2 gal, 1/50 hp, 115V AC MPN:554405

• The LITTLE GIANT PUMP 554405 is a condensate removal pump for collecting and removing water from air conditioning, refrigeration, dehumidification equipment, high-efficiency gas furnaces, and condensing boilers when gravity drainage is not practical. It uses a float switch for automatic operation and features a 1/2 gallon reservoir with three inlets. This floor-standing, self-priming centrifugal pump is designed for clear water and operates on 115/120V AC power.

  Key Features:


  • 1/50 hp motor: Pumps up to 65 GPH at 1 ft of head.
  • Maximum head: Handles discharge up to 15 ft.
  • Reservoir capacity: 1/2 gallon tank for condensate collection.
  • Automatic activation: Float switch turns the pump on at 2.5 in and off at 1.1 in.
  • Connections: Open inlet accepts 1 1/8 in pipe
  • 3/8 in barbed discharge outlet.
  • Construction: ABS plastic housing and tank with a stainless steel shaft.
  • Electrical: 115V AC, single phase, 60 Hz, 1 A, corded electric with 6 ft power cord.
  • Temperature and pressure limits: For clear water from 33 to 140 Degrees F, with maximum operating pressure of 6.5 psi.
  • Included switch: Safety switch included.
  • Certification: cCSAus.
