Submersible Pump, 1.1 A, 115 V, 1/40 hp, Single Phase, 12.2 ft Max Head, 1/4 in Intake and Discharge MPN:527003

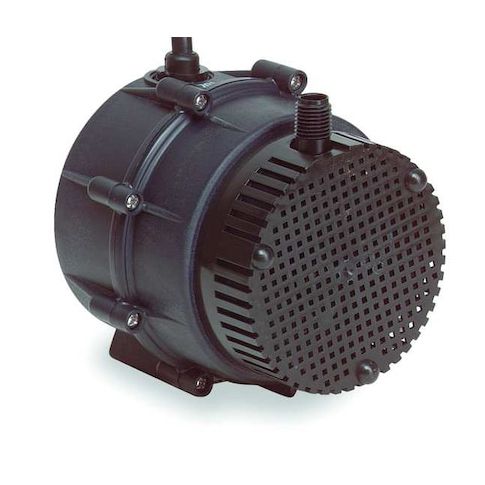

The LITTLE GIANT PUMP 527003 is a compact submersible centrifugal pump from the NK-2 Series for liquid transfer and recirculation in commercial, industrial, and home applications. It has an oil-filled 1/40 hp motor, a corrosion-resistant nylon housing, and a screened inlet. This pump is used for applications such as statuary fountains, water displays, air conditioners, machine tool coolants, hydroponics, aquariums, swimming pools, ice makers, boat bailing, fuel oil transfer, and pumping mild chemicals such as soap solutions, acids, plating solutions, and fertilizers.

Key Features of the LITTLE GIANT PUMP 527003:

• Maximum flow rate: Up to 325 gph, with 270 gph at 5 ft of head and 130 gph at 10 ft of head.
• Maximum head: 12.3 ft shut-off head for vertical liquid movement.
• Discharge connection: 1/4 in. MNPT outlet for compatible discharge piping.
• Motor design: Oil-filled shaded pole motor with dielectric lubricant for motor heat transfer and permanently lubricated sleeve bearings.
• Installation: Can be installed horizontally or vertically as needed.
• Continuous duty: Built for continuous operation.
• Electrical: 115V AC, single phase, 60 Hz, 1.1 A with plug-in connection and 6 ft cord.
• Construction: Nylon housing and nylon open impeller with mechanical seal and screened inlet.
• Media limits: Maximum liquid temperature of 120 degrees F and maximum specific gravity of 1.1.
• Size: Approximately 4.3 in. long x 4.3 in. wide x 4.6 in. high.
• Thermal overload protection: Yes.
