1/10 HP PPS Magnetic Drive Pump 115V 1" FPT MPN:582604

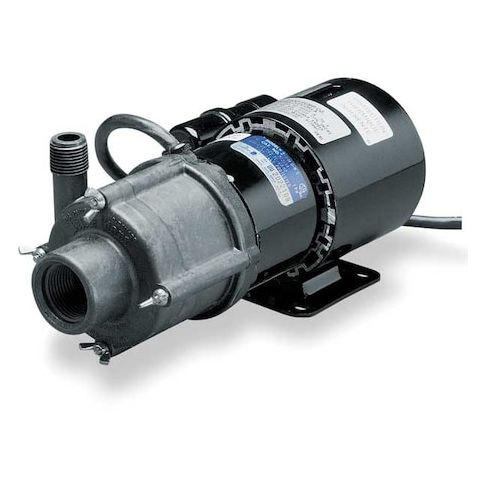

• The LITTLE GIANT PUMP - 582604 is a magnetic drive centrifugal pump with a 1/10 hp motor for transferring highly corrosive chemicals and solutions. It is designed for gravity-feed operation, with the pump inlet positioned below the liquid level, and uses a magnetic drive design that eliminates seal-caused friction loss, wear, contamination, and leakage. This pump has a maximum head of 24.3 ft, handles fluids up to 1.1 specific gravity and 100 SSU viscosity, and is rated for media temperatures up to 200 degrees F.

  Key Features:


  • Motor: 1/10 hp, 115V AC, single-phase, 60 Hz open TEFC permanent split capacitor motor.
  • Flow performance: Up to 13.5 gpm at 3 ft of head
  • 9.2 gpm at 15 ft
  • 7.5 gpm at 18 ft
  • 1 gpm at 24 ft.
  • Head pressure: Maximum head of 24.3 ft with maximum operating pressure of 10.5 psi.
  • Materials: Glass-filled polyphenylene sulfide magnet housing and volute with carbon and glass-filled polyphenylene sulfide impeller.
  • Internal components: Self-lubricating carbon impeller bushing with ceramic thrust washers and ceramic shaft.
  • Seal material: Fluoroelastomer (FKM) O-ring/gasket.
  • Connections: 1 in FNPT inlet and 1/2 in NPT discharge outlet.
  • Run-dry capability: Can run dry for up to 8 hours.
  • Mounting: Horizontal motor mounting.
  • Power cord: 6 ft, 3-conductor SJO cord.
  • Size: Approximate overall dimensions are 10.9 in L x 5.5 in W x 9 in H.
