1/10 HP Polypropylene Magnetic Drive Pump 115V 1" FPT MPN:582503
Free Shipping
In Stock
The Little Giant 1/10 HP Polypropylene Magnetic Drive Pump is a reliable and efficient solution for circulating semi-corrosive solutions. Ideal for handling alkalis, acids, solvents, and more, this pump features a leak-proof, seal-less magnetic drive and is designed for in-line, non-submersible use. Constructed with chemical-resistant materials, it provides trouble-free service and is easy to clean and maintain. Suitable for a variety of applications, including laboratory settings, chemical processing, and wastewater treatment, this pump offers a cost-effective and reliable solution for pumping semi-corrosive fluids. Its compact design and ease of use make it a valuable addition to any facility.
Top product features:
- Leak-proof, seal-less magnetic drive for reduced maintenance and increased reliability
- Glass-filled polypropylene construction for excellent chemical resistance and durability
- Ceramic shaft and thrust washers for excellent wear and trouble-free service
Top product applications:
- Handling semi-corrosive solutions such as alkalis, acids, solvents, and more
- Circulation of semi-corrosive chemicals in industrial processes
- Pumping of corrosive liquids in laboratories and research facilities

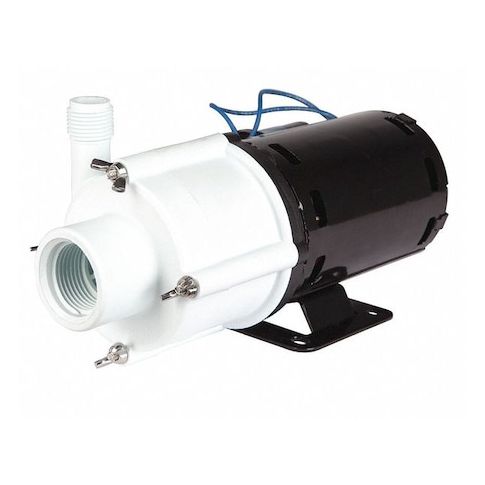

The LITTLE GIANT PUMP - 582503 is a magnetic drive centrifugal pump from the MD-SC Series for circulating semi-corrosive solutions in in-line, non-submersible applications. It is designed for mild chemicals at moderate temperature and uses a seal-less magnetic drive to eliminate seal-caused friction loss, wear, contamination, and leakage. The pump has a glass-filled polypropylene housing, volute, and impeller, along with a ceramic shaft and thrust washers, and it is configured for gravity-feed operation with the inlet positioned below the liquid level.
Key Features of the LITTLE GIANT PUMP - 582503:
- Magnetic drive design: Seal-less construction for circulating semi-corrosive liquids such as alkalis, acids, and solvents.
- Motor: 1/10 hp open fan cooled permanent split capacitor motor, 115V AC, single phase, 60 Hz.
- Flow and head: Up to 13.5 gpm with a maximum head of 24.3 ft.
- Port sizes: 1 in FNPT inlet and 1/2 in FPT outlet.
- Materials: Glass-filled polypropylene housing and impeller with ceramic shaft and thrust washers.
- O-ring/gasket material: Nitrile (Buna-N).
- Capacity limits: Maximum specific gravity 1.1 and maximum viscosity 100 SUS.
- Temperature limits: Maximum media temperature 150 degrees F and maximum ambient temperature 77 degrees F.
- Operating pressure: Maximum 10.5 psi.
- Installation: Horizontal mounting, in-line, non-submersible, gravity-feed design.
- Cord: 6 ft, 3-conductor SJP cord.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 7.50
- Package Height: 11.60
- Package Weight: 8.75
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
