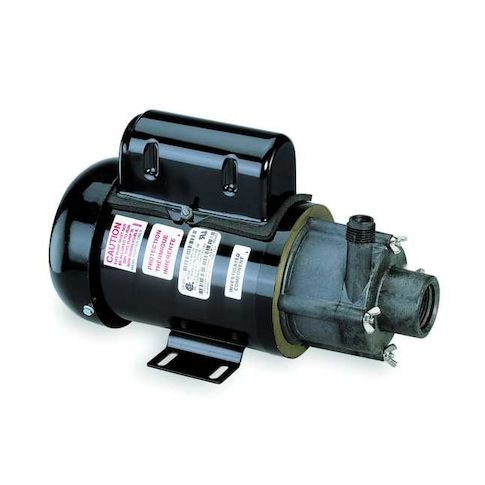

1/8 HP PPS Magnetic Drive Pump 115/230V 1" FPT MPN:584604

• The LITTLE GIANT PUMP 584604 is a magnetic drive pump for circulating highly corrosive chemicals and solutions, including acids, alkalis, solvents, brine, plating solutions, and sterile solutions that are compatible with the pump materials. It can be used as a non-submersible or in-line pump and features a gravity-feed design that requires the inlet to be lower than the liquid level. This unit uses a 1/8 hp permanent split capacitor motor with a totally enclosed fan cooled enclosure and operates on 115/230V AC, single phase, 60 Hz.

  Key Features of the LITTLE GIANT PUMP 584604:


  • Magnetic drive design: Reduces seal-related friction loss, wear, contamination, and leakage.
  • Construction materials: Glass-filled polyphenylene sulfide magnet housing and volute with carbon and glass-filled polyphenylene sulfide impeller.
  • Sealing components: Fluoroelastomer (FKM) O-ring with ceramic thrust washers and ceramic shaft.
  • Run dry capability: Can run dry for up to 8 hours.
  • Performance: Maximum head of 29.3 ft with flow rates up to 19.2 gpm at 3 ft of head and 8.4 gpm at 24 ft of head.
  • Connection sizes: 1 in FNPT inlet and 1/2 in NPT discharge outlet.
  • Fluid limits: Handles liquids up to 1.1 specific gravity and 100 SUS viscosity.
  • Temperature limits: Maximum media temperature 200 degrees F and maximum ambient temperature 77 degrees F.
  • Operating pressure: Maximum 12.7 psi.
  • Mounting and size: Horizontal mounting
  • approximately 11.2 in long, 5.2 in wide, and 7.3 in high.
  • Electrical: Includes a 6 ft, 3-conductor SJO cord.
