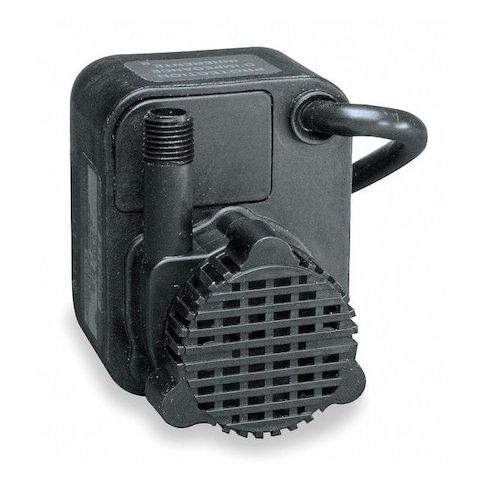

Submersible Pump, 0.6 A, 115V AC, 1/125 hp, 7 ft Max Head, 1/4 in Intake and Disch, Epoxy Encap MPN:518200

• The LITTLE GIANT PUMP 518200 PE-1 Series is a compact submersible centrifugal pump for water transfer, recirculation, and water displays. It uses a 1/125 hp epoxy encapsulated direct-drive motor and operates on 115V AC with a plug-in 6 ft power cord. This pump delivers up to 170 gph at 1 ft of head, up to 100 gph at 5 ft of head, and has a maximum head of 7 ft. It is used in applications such as statuary fountains, water displays, air conditioners, and machine tools.

  Key features:


  • Submersible design: Intended for operation while submerged in water.
  • Flow rate: 170 gph at 1 ft of head and 100 gph at 5 ft of head.
  • Maximum head: 7 ft shut-off head capability.
  • Motor: 1/125 hp direct-drive motor with epoxy encapsulation.
  • Power supply: 115V AC, 60 Hz, 0.6 A.
  • Electrical connection: Plug-in design with 6 ft power cord.
  • Discharge connection: 1/4 in male NPT outlet
  • accepts 1/2 in ID flexible tubing.
  • Screened inlet: Helps limit debris from entering the pump.
  • Materials: Polypropylene housing and impeller with a nitrile mechanical seal.
  • Duty: Continuous duty operation.
  • Overload protection: Impedance protected motor with overload protection.
  • Size: Approximately 3.5 in long, 2.8 in wide, and 3.6 in high.
  • Listings: UL and cCSAus listed.
