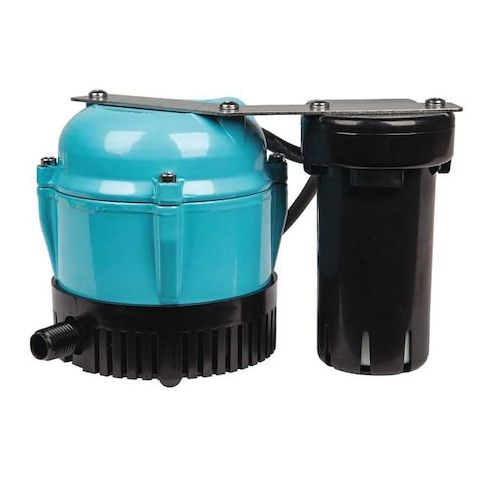

1/150 HP, 120 Volt Condensate Pump MPN:550521
Free Shipping
In Stock
The Little Giant ABS-1 Series condensate pump is a reliable and efficient solution for removing condensation from air conditioner drain pans or reservoirs. Its shallow pan tank design and advanced mechanical switch ensure easy operation and low on and off levels. Ideal for in-pan placement, this pump is perfect for existing drip trays, air conditioner drain pans, and hydroponic applications such as water circulation in small trays, pans, and flood tables. Its durable construction features an epoxy-coated cast aluminum housing, nylon volute, and stainless steel shaft, making it a long-lasting and secure choice for condensate removal and water circulation needs.
Top product features:
- 1/150 hp oil-filled motor
- Epoxy-coated cast aluminum housing and motor cover
- Stainless steel shaft with Nitrile shaft seal
Top product applications:
- condensate removal from air conditioner drain pan or reservoir
- hydroponic applications such as water circulation in small trays, pans, and flood tables
- removal of condensation from existing drip trays
The LITTLE GIANT PUMP 550521 is an in-pan condensate removal pump for removing water from an air conditioner drain pan or reservoir. It uses a sealed, submersible centrifugal pump with a screened intake and float switch activation for automatic start and stop. This 1-ABS Series unit is designed for shallow pan applications and has no reservoir, with turn-on at 1.75 in and shut-off at 1.25 in.
Key Features of the LITTLE GIANT PUMP 550521 Condensate Removal Pump:
- Application: Built for condensate removal with clear water media.
- Pump type: In-pan, submersible design for placement in shallow drip trays and pans.
- Motor: 1/150 hp oil-filled motor, 70 W, 115/120V AC, single phase, 60 Hz.
- Automatic operation: Mechanical float switch starts and stops the pump automatically.
- Flow performance: 205 GPH at 1 ft of head, 145 GPH at 5 ft, and 25 GPH at 9 ft
- maximum head 10 ft.
- Construction: Epoxy-coated cast aluminum housing and motor cover, nylon volute, and stainless steel shaft with Nitrile shaft seal.
- Discharge connection: 1/4 in MNPT discharge
- includes a 90 degree 1/4 in MNPT adapter for use with 1/2 in discharge pipe.
- Intake: Screened submersible inlet with removable inlet filter screen.
- Electrical connection: 9 ft cord with plug-in connection.
- Temperature limits: Maximum ambient and media temperature of 120 degrees F
- minimum media temperature of 33 degrees F.
- Protection: Thermal overload protection.
- Size: 7.44 in L x 3.75 in W x 4.31 in H.
- Standard: cCSAus.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 9.00
- Package Height: 4.30
- Package Weight: 4.05
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
