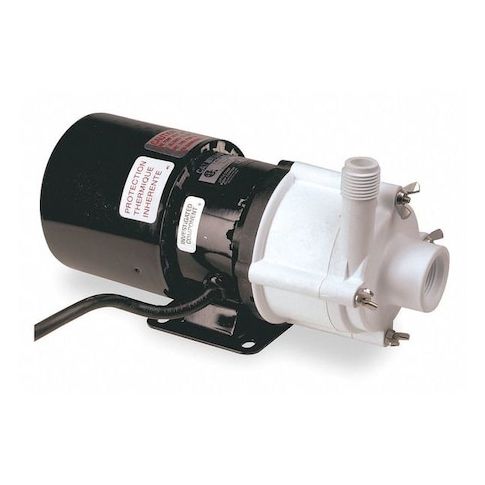

Magnetic Drive Pump, 1/12 HP, Glass-Filled Polypropylene, 115V, 3/4 in FPT, Single Phase MPN:581503
Free Shipping
In Stock
The Little Giant 750 GPH Magnetic Drive Pump is a reliable and efficient solution for transferring semi-corrosive chemicals and solutions. Designed for in-line, non-submersed use, this pump features leak-proof, seal-less magnetic drives and a rotatable pump head for easy maintenance. With a 1/12 HP, 115V motor and a 6' power cord, it can handle up to 750 gallons per hour at a 1-foot rise. Suitable for applications such as aquariums, laboratories, and chemical processing, this pump is also ideal for use in areas with limited space or where traditional pumps are not suitable.
Top product features:
- Leak proof, seal-less magnetic drive
- Rotatable pump head for easy maintenance
- Thermally protected, open fan-cooled motor with ball bearings
Top product applications:
- Chemical Processing: The pump's ability to handle semi-corrosive chemicals and solutions makes it suitable for use in chemical processing applications.
- Laboratory Equipment: The pump's compact size and ease of maintenance make it a good fit for laboratory equipment, where space and simplicity are important.
- Water Treatment: The pump's ability to handle high flows and its leak-proof design make it suitable for use in water treatment applications, where reliability and efficiency are critical.
The LITTLE GIANT PUMP 581503 is an MD-SC Series magnetic drive pump for in-line, non-submersed use with semi-corrosive chemicals and solutions. It uses a leak-proof, seal-less magnetic drive and a 115V AC, single-phase, 1/12 hp open fan-cooled motor with a 6 ft power cord and 3-prong molded plug. This gravity-feed pump requires the inlet to be lower than the liquid level and provides up to 750 GPH at 1 ft of rise, with a maximum head of 21.9 ft.
Key Features:
- Seal-less magnetic drive: Eliminates seal-caused friction loss, wear, contamination, and leakage.
- Flow performance: Delivers up to 11.8 gpm at 3 ft of head, 11.1 gpm at 6 ft, 10 gpm at 9 ft, and 7 gpm at 15 ft.
- Motor: 1/12 hp shaded pole motor with open fan-cooled enclosure and thermal protection.
- Material construction: Glass-filled polypropylene housing, volute, impeller, and magnet housing.
- Internal components: Nitrile (Buna-N) O-ring with ceramic thrust washers and shaft.
- Connection sizes: 3/4 in FPT inlet and 1/2 in MPT outlet.
- Fluid limits: Handles liquids up to 150 degrees F, with maximum specific gravity of 1.1 and maximum viscosity of 100 SSU.
- Operating setup: Horizontal mounting design for gravity-feed applications.
- Electrical: 115V AC, 60 Hz, single phase, 2.4 A full load current.
- Dimensions: Approximately 9.8 in long, 3.9 in wide, and 4.9 in high.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 7.50
- Package Height: 11.50
- Package Weight: 8.65
