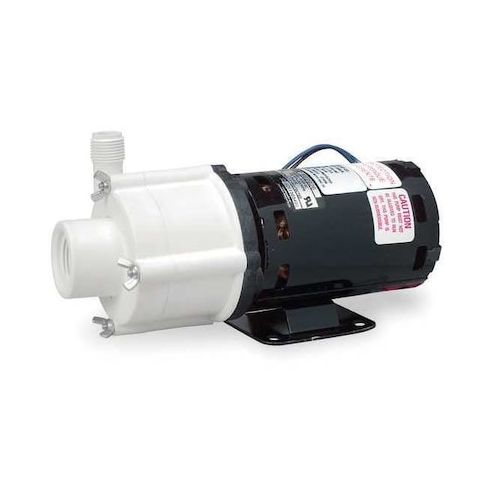

1/8 HP Polypropylene Magnetic Drive Pump 115V 1" FPT MPN:583503
Free Shipping
In Stock
For commercial, industrial, or residential applications, the Little Giant 5-MD-SC chemical pump is ideal for recirculating mildly corrosive fluids, including acids, alkalis, plating, brine, or salt solutions. Its thermally protected motor and leak-proof, seal-less magnetic drive ensure consistent performance and minimize downtime. Featuring glass-filled polypropylene and ceramic parts, this pump offers excellent chemical resistance and wear resistance. Suitable for in-line, non-submersible use, it's perfect for applications like laboratory, chemical processing, and wastewater treatment, providing reliable and trouble-free service with easy maintenance and cleaning.
Top product features:
- Thermally protected, open, fan-cooled, permanent split capacitor motor delivers consistency for intermittent usage.
- Glass-filled polypropylene magnet housing and volute provide excellent chemical resistance.
- Ceramic thrust washers and shaft, supported at both ends, prevent impeller damage during start-up and stop of pump.
Top product applications:
- Commercial applications
- Industrial applications
- Residential applications
The LITTLE GIANT PUMP - 583503 is a magnetic drive pump from the MD-SC series for in-line, non-submersible use with mildly corrosive fluids such as acids, alkalis, plating, brine, and salt solutions. It uses a seal-less magnetic drive to reduce leakage and contamination associated with shaft seals. This pump has a 1/8 hp permanent split capacitor motor with an open fan-cooled enclosure, is designed for horizontal mounting, and is intended for gravity-feed installations where the pump inlet is below the liquid level.
Key Features of the LITTLE GIANT PUMP - 583503:
- Seal-less magnetic drive: Eliminates seal-caused friction loss, wear, contamination, and leakage.
- Construction materials: Glass-filled polypropylene housing, volute, and impeller with a Buna-N O-ring for chemical resistance.
- Ceramic internal parts: Ceramic shaft and thrust washers support wear resistance during operation.
- Performance: Delivers up to 16.5 gpm at 3 ft of head with a maximum head of 27.5 ft.
- Fluid handling limits: Rated for liquids up to 1.1 specific gravity and 100 SUS viscosity.
- Temperature limits: Maximum media temperature is 150 degrees F
- maximum ambient temperature is 77 degrees F.
- Connections: 1 in FNPT inlet and 1/2 in NPT discharge.
- Electrical: 115V AC, single phase, 60 Hz, 2.0 A, with a 6 ft 3-conductor SJP power cord and 3-prong plug.
- Mounting: Horizontal motor mount for in-line, non-submersible installation.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 7.70
- Package Height: 11.50
- Package Weight: 9.15
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
