Pump, 7 In. L, 4-1/2 In. W, 5-1/2 In. H MPN:504203
Free Shipping
In Stock

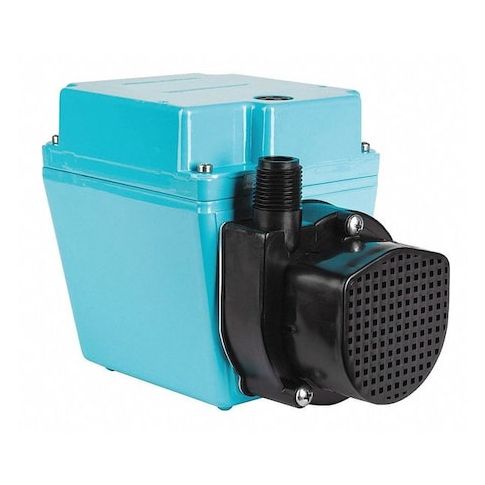

The Little Giant 4E-34NR is a reliable and efficient small oil-filled submersible pump designed for a variety of applications. Suitable for commercial, industrial, and home use, it's perfect for statuary fountains, water displays, air conditioner condensate removal, machine tool coolants, and more. This compact pump features a 810 GPH flow rate and 24.5' maximum lift capacity, making it ideal for transferring or recirculating liquids. With a 1/12 hp oil-filled motor and epoxy coated cast aluminum housing, it can handle intermittent temperatures up to 120°F and provides thermal overload protection for added peace of mind.
Top product features:
- 1/12 hp, oil-filled motor
- Epoxy coated die-cast aluminum housing
- 24.5' maximum lift
Top product applications:
- statuary fountains
- water displays
- machine tool coolants
The LITTLE GIANT PUMP 504203 is a compact submersible centrifugal pump for transferring or recirculating liquid in applications such as statuary fountains, water displays, air conditioners, and machine tool coolants. It has an oil-filled 1/12 hp motor, an epoxy-coated cast aluminum pump housing, and is designed for submersible use only. The pump delivers up to 810 GPH, reaches a maximum head of 24.5 ft, and is rated for intermittent liquid temperatures up to 120°F.
Key Features:
- Maximum flow rate: Up to 810 GPH at 1 ft of head.
- Flow performance: 745 GPH at 5 ft, 613 GPH at 10 ft, 400 GPH at 15 ft, and 173 GPH at 20 ft of head.
- Maximum head: 24.5 ft lift capacity.
- Discharge connection: 1/2 in (M)NPT outlet for compatible discharge piping.
- Inlet connection: 3/4 in (F)NPT inlet with screened inlet design.
- Motor sealing: Oil-filled motor for submersible operation.
- Overload protection: Thermal overload protection is included.
- Electrical: 115V AC, 60 Hz, 3.5 A operation.
- Construction: Epoxy-coated cast aluminum pump housing with nylon impeller.
- Size: 7 in L x 4.5 in W x 5.5 in H with a 6 ft cord.
- Duty: Continuous duty cycle.
- Listings: UL and cCSAus Listed.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.80
- Package Width: 6.40
- Package Height: 6.50
- Package Weight: 7.80
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
