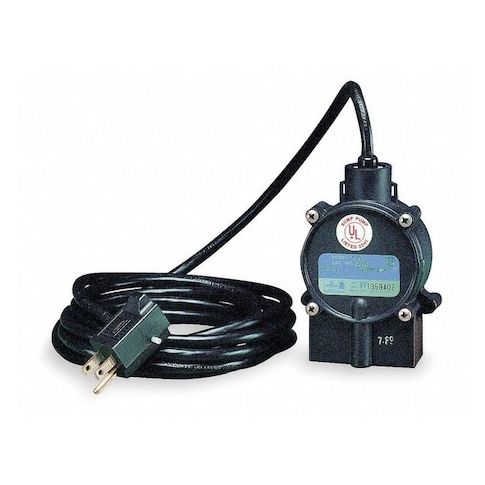

Float Switch, 18 ft, Nylon, 115V AC MPN:599014

The LITTLE GIANT PUMP 599014 is an RS-5-LL low-level diaphragm float switch that converts a manual pump to automatic operation. It is designed for pumps up to 1/3 hp and 10 amps at 115V AC, and can be used with dewatering and sump pumps. This piggy-back switch provides an on level between 2 in. and 3 in. and an off level between 1/2 in. and 1-1/2 in., and it includes mounting hardware for installation.

Key features:

• Diaphragm switch type: Sensor-actuated float switch for automatic pump control.
• Piggy-back plug connection: Connects through a piggy-back electrical plug arrangement.
• Electrical rating: 115V AC, 10A maximum running/load current, 16A maximum starting current.
• Switch operation: Normally open contact form.
• Low-level switching range: Turns pump on at 2 in. to 3 in. and off at 1/2 in. to 1-1/2 in.
• Compatible pump types: For use with dewatering pumps and sump pumps.
• Cord length: 18 ft. cord for switch connection.
• Materials: Nylon float with Buna-N float switch material and stainless steel mounting bracket.
• Maximum liquid temperature: 120 degrees F.
• Includes: Mounting hardware.
• Standards: CSA.
