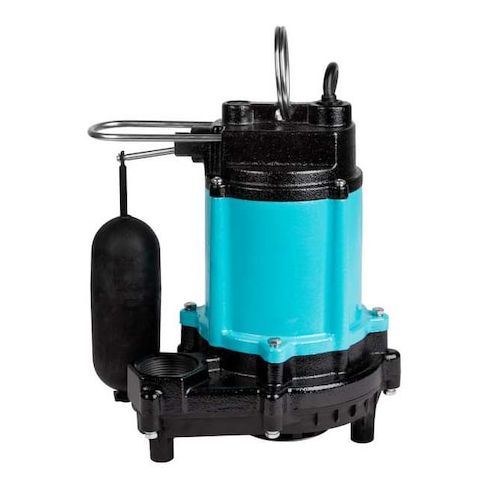

Submersible Sump Pump, 10ft, 11.25 in, 115V AC MPN:510803

The LITTLE GIANT PUMP - 510803 is a submersible sump pump for sump and light effluent applications, including dewatering, transfer, and waste removal. It has a 1/2 hp motor, automatic operation with an integral vertical float switch, and a polypropylene base with cast iron body and motor housing. This corded 115V AC pump is designed for continuous duty and installs in sump pits with a minimum diameter of 18 inches.

Key Features:

• Automatic operation: Integral vertical float switch turns the pump on at 8 to 11 inches and off at 2 to 5 inches.
• Motor: 1/2 hp, single-phase, 115V AC motor operating at 6.5 A and 60 Hz.
• Flow performance: Delivers 57 gpm at 10 feet of head, with a maximum head of 36 feet.
• Solids handling: Handles solids up to 1/2 inch for light effluent service.
• Construction: Cast iron body, motor housing, and volute with a polypropylene base and nylon semi-open impeller.
• Discharge connection: 1-1/2 inch female NPT discharge.
• Submersible design: Intended for submerged installation with a 10 ft SJTW power cord.
• Duty cycle: Rated for continuous duty operation.
• Temperature limit: Handles liquid temperatures up to 140 degrees F.
• Listing: cCSAus Listed.
