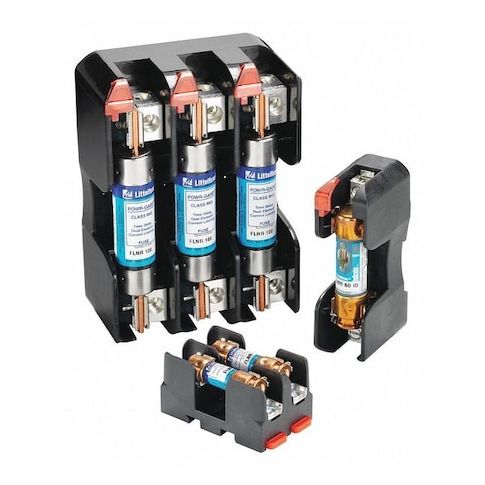

Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Pressure Plate
This open fuse block from Littelfuse is designed for a wide range of applications, including industrial control systems, medical equipment, and power supplies. It features a 0 to 30A amp range and 600V AC/DC volt rating, making it suitable for use in high-voltage applications. The pressure plate connector ensures secure and easy installation, while the thermoplastic body and spring-reinforced clip provide durability and reliability. With a compact design and DIN rail mounting option, this fuse block is ideal for use in space-constrained environments. It is also compatible with various fuse types, including Class H and Class K5, for added flexibility.
Top product features:
- Open design allows for easy access to fuses for replacement or testing
- Three-pole configuration enables the connection of multiple circuits
- Pressure plate connector provides a secure and reliable connection to fuses
Top product applications:
- Industrial Control Panels
- Electrical Distribution Systems
- Automotive Electrical Systems
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 0 to 30 A, Number of Poles 3, 600V AC/DC, For Fuse Size 5 in L x 13/16 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series LFH, Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 10 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Pressure Plate, Height 2.07 in, Width 4.25 in, Length 6.56 in, Spring Reinforced Clip Yes
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 85 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 4.50
- Package Height: 2.50
- Package Weight: 1.15
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on January 15, 2026 12:19am UTC
Category: Fuses and Accessories
