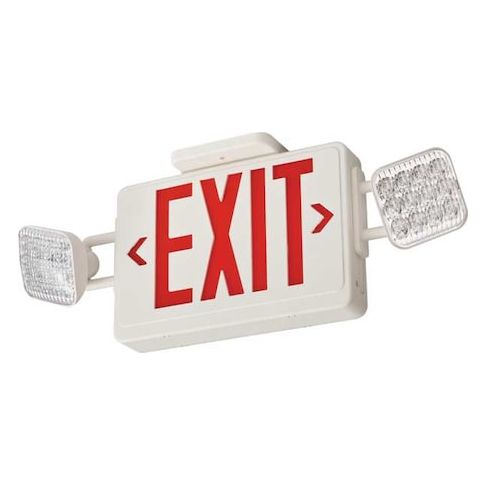

LED Emergency Combo Light, Red or Green Switchable, Square Lamp Heads MPN:ECRG SQ

The LITHONIA LIGHTING ECRG SQ is an LED emergency light and exit combo that combines exit signage with two side-mounted square lamp heads in one unit. It is designed for indoor damp locations and provides 90 minutes of emergency battery backup. This model features a white textured plastic housing, dual-voltage 120/277V AC operation, and an internal toggle switch that allows selection of red or green exit lettering. It can be configured for 1- or 2-face use and includes universal field-selectable chevrons.

Key Features:

• LED light source: Uses LED lighting for both the exit sign and emergency lamp heads.
• Emergency operation: Battery backup provides 90 minutes of illumination during power loss.
• Battery details: Nickel-metal hydride battery, 3.6 V DC, with a 24-hour recharge time.
• Voltage: Operates on 120/277V AC, 60Hz.
• Selectable exit color: Internal toggle switch allows red or green text selection.
• Included components: Comes with an extra faceplate, red/green inserts, and a status indicator.
• Testing function: Equipped with a test button and status indicator for manual checks.
• Housing: White textured plastic housing with white background.
• Lamp heads: Two side-mounted square lamp heads, 1 W each.
• Face configuration: Supports 1- or 2-face installation.
• Operating range: Listed for indoor damp locations from 50°F to 104°F.
• Size: 19 in W x 8 in H x 4-1/4 in D.
