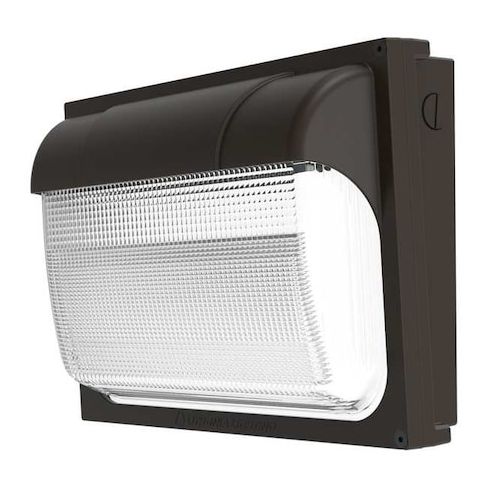

LED Size 2 Wallpack MPN:TWX2 LED ALO 50K MVOLT DDBTXD

The LITHONIA LIGHTING TWX2 LED ALO 50K MVOLT DDBTXD is an LED wall pack designed for outdoor wall-mounted lighting. It uses adjustable light output to let the installer set the lumen level during installation and can replace 70W to 250W HID or up to 250W metal halide luminaires. This fixture delivers 6,850 lumens with a 5000K color temperature and Type III light distribution, and it is rated for 120 to 277V AC operation.

Key Features:

• LED light source: 54W LED wall pack with 6,850 lm output and 127 lm/W efficacy.
• Adjustable light output: ALO feature allows light output to be set during installation.
• Replacement range: Listed as an LED replacement for 70W to 250W HID fixtures.
• Color temperature: 5000K light appearance with 80 CRI.
• Distribution: Type III light distribution for outdoor area coverage.
• Housing and lens: Die-cast aluminum housing in bronze with a borosilicate glass lens.
• Mounting: Surface-mount design with recommended mounting height of 15 ft.
• Ingress rating: IP65 rated for protection against dust and water intrusion.
• Electrical: Operates on 120 to 277V AC.
• Service life: Rated life of 100,000 hours.
• Dimensions: 13 in W x 9 in H x 4-1/2 in D.
• Listings: CSA and DLC listed.
