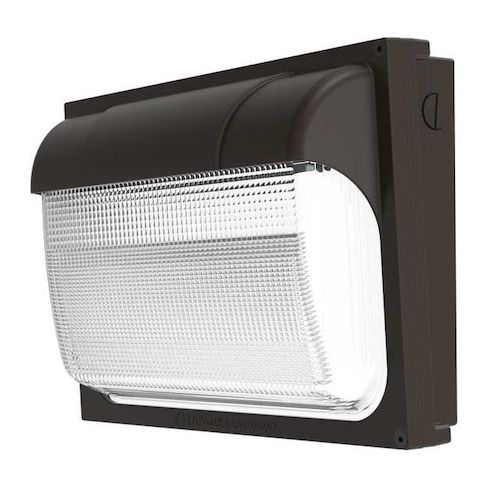

LED Size 2 Wallpack MPN:TWX2 LED ALO 40K MVOLT DDBTXD
Free Shipping
In Stock
The TWX2 LED Wallpack is a versatile and energy-efficient lighting solution designed for a wide range of applications, including industrial, commercial, and retail spaces. With its adjustable light output feature, contractors can customize the illumination level to suit specific job sites, replacing metal halide luminaires with a single fixture. This results in significant energy savings, up to 82%, and a longer service life of over 20 years, reducing maintenance costs and frequent replacements. Suitable for replacing 70W to 250W metal halide luminaires, the TWX2 LED Wallpack is an ideal choice for areas requiring high-quality lighting with minimal maintenance.
Top product features:
- Energy efficiency, saving up to 82% in energy costs when replacing a metal halide luminaire.
- Expected service life of more than 20 years, eliminating frequent lamp and ballast replacements associated with traditional technologies.
- Adjustable Light Output (ALO) feature allowing the contractor to set the light output during installation, to a level perfectly suited for the job site.
Top product applications:
- Warehouse Lighting
- Highway Lighting
- Industrial Lighting
The LITHONIA LIGHTING TWX2 LED ALO 40K MVOLT DDBTXD is an LED wall pack for outdoor surface-mount lighting applications. It uses adjustable light output set during installation and provides 6,850 lumens at 4000K with a Type III distribution. This fixture operates on 120 to 277V AC and is designed to replace 70W to 400W HID luminaires, including up to 250W metal halide or high pressure sodium fixtures, while reducing energy use compared with traditional metal halide wall packs.
Key Features of the LITHONIA LIGHTING TWX2 LED ALO 40K MVOLT DDBTXD:
- Light source: LED wall pack with 54W lamp watts and 127 lumens per watt.
- Adjustable light output: ALO feature allows the light output to be set during installation.
- Light color: 4000K color temperature with 80 CRI.
- Distribution: Type III light distribution for outdoor area coverage.
- Housing: Bronze die-cast aluminum body with borosilicate glass lens.
- Electrical: Multi-volt operation from 120 to 277V AC.
- Ingress rating: IP65.
- Dimensions: 13 in W x 9 in H x 4-1/2 in D.
- Mounting: Surface mount with 1/2 in NPT hub size and three 1/2 in knockouts.
- Service life: Rated life of 100,000 hours.
- Mounting height: Recommended maximum mounting height of 15 ft.
- Standards: CSA and DLC listed.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.70
- Package Height: 6.70
- Package Weight: 12.45
