LED Photocontrol, 1, 000 W, Yellow, 5 sec Max, 2 sec Min MPN:DLL480 1.5 CUL JU
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6178085

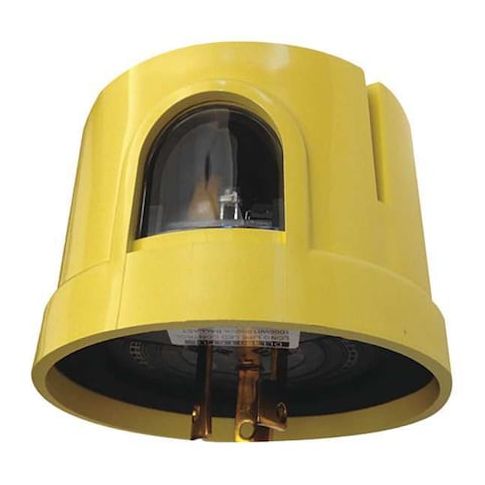

LED Photocontrol, 1, 000 W, Yellow, 5 sec Max, 2 sec Min
This Lithonia Lighting LED Photocontrol is a reliable and efficient solution for automatic lighting control. Designed for use in a variety of applications, including parking garages, warehouses, and outdoor areas, it provides precise control over lighting levels. The photocontrol automatically turns lights on at dawn and off at dusk, reducing energy consumption and extending the lifespan of the lighting system. Its rugged design withstands extreme temperatures and harsh weather conditions, making it an ideal choice for demanding environments. Its compact size and easy installation make it a convenient option for new or retrofit lighting projects.
Top product features:
- LED Photocontrol turns on at 1.5 foot candles and turns off at 2.25 foot candles.
- The device has a setting for dusk to dawn operation.
- The product is designed to be raintight, providing protection from the elements.
Top product applications:
- Outdoor Lighting
- Parking Garage Lighting
- Industrial Lighting
Photocontrol, Mounting Turn-Lock, Voltage 480V AC, Max. Wattage 1,000, Max. Incandescent Amps 8.3 A, Max. Ballast Amps 15 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Yellow, Temp. Range -40 Degrees to 158 Degrees F, Length 3 1/4 in, Width 3 1/4 in, Depth 2 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Plastic, Setting Dusk to Dawn, Standards ANSI C136.10, RoHS, UL Listed, Includes Not Applicable
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 3.40
- Package Height: 3.40
- Package Weight: 0.30
Product info last updated on January 15, 2026 8:36am UTC
Category: Industrial Electrical Controls and Automation
