Exit Sign, Silver, 2 Face(s), LED, Recessed Mount, Nickel Cadmium MPN:EDGR 2 RMR EL
Free Shipping
In Stock
The EDG-EDGR Series exit sign from Lithonia Lighting is a sleek and energy-efficient solution for high-end applications. Suitable for applications requiring attractive edge-lit exit signage, this exit sign offers universal installation and low energy consumption. With a manual push button test and self-diagnostic option available, it ensures reliable operation and easy maintenance. Its dual voltage capability (120/277V) and versatility in top, end, or back mounting make it a convenient choice for various settings. Perfect for offices, hotels, and other commercial spaces, this exit sign combines style and functionality to meet the needs of discerning customers.
Top product features:
- Dual Volt (120/277V)
- Top, end, or back mount
- Manual push button test standard with self-diagnostic option available
Top product applications:
- High-end applications
- Applications requiring attractive edge-lit exit signage
- Universal installation

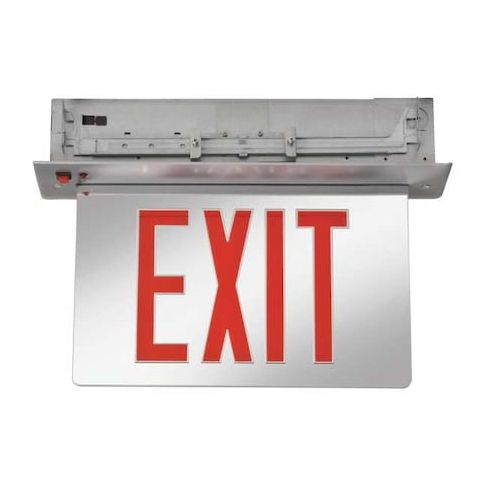

The LITHONIA LIGHTING EDGR 2 RMR EL is an edge-lit LED exit sign from the EDGR Series with a clear background, red lettering, and a silver matte housing. It is a recessed, two-face unit designed for 120/277V AC operation and includes emergency battery backup with 90 minutes of illumination. The sign uses LED lighting technology with a 3 W fixture wattage and features universal field-selectable chevrons for directional indication.
Key Features of the LITHONIA LIGHTING EDGR 2 RMR EL Exit Sign:
- Edge-Lit Design: Clear background with red text for a distinct exit sign display.
- LED Light Source: Uses LED technology with 3 W fixture wattage and 3.1 W lamp wattage.
- Battery Backup: Includes a nickel cadmium emergency battery for 90 minutes of illumination.
- Voltage: Dual-voltage 120/277V AC for compatibility with common building electrical systems.
- Directional Indicators: Universal field-selectable chevrons allow direction to be set during installation.
- Mounting: Recessed mount configuration
- bar hanger and brackets are included.
- Housing: Matte silver aluminum housing.
- Sign Format: Two-face exit sign with 6 in high red letters and a 3/4 in stroke width.
- Testing Function: Manual push button test for checking battery backup operation.
- Dimensions: 13 in W x 8 in H x 1-3/4 in D.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.20
- Package Width: 11.70
- Package Height: 5.90
- Package Weight: 6.60
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
