Precision Tig 225 MPN:LINK2535-1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
505-897-K2535-1
Precision Tig 225 MPN:LINK2535-1

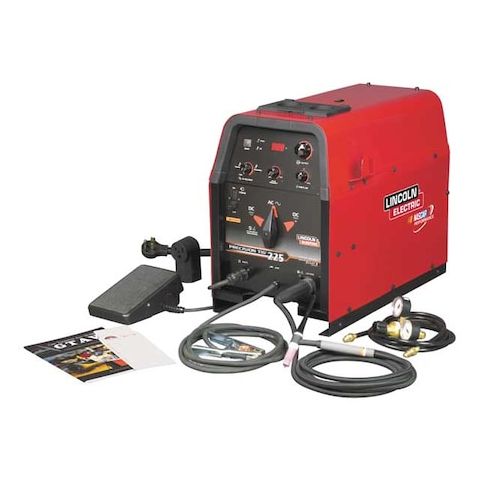

Precision TIG 225 Welder, GTAW, 1-Phase, Includes Accessories
Additional Information
- UPC Code: 015082669212
- Country of Origin: UNITED STATES
- Special Order Item: Yes
- State Restricted: NO
- Minimum Order Quantity: 1
- Minimum Order UOM: EA
- Cost UOM: EA
- UOM Conversion: 1 EA = 1 EA
- Item Weight: 1
- Item Length: 32.88
- Item Width: 16.25
- Item Height: 25.81
- Item Cube: 13790.283
Attributes
- Amps [Nom]: 5 A to 230 A
- Depth [Nom]: 25.6 in
- Frequency [Nom]: 60 Hz
- Height [Nom]: 20.7 in
- Includes: (1) Precision TIG 225 Welder (1) Torch Parts Storage Compartment; (1) Torch Hanger; (1) Work Cable and Clamp 10 ft (3.0 m); (1) Removable Lift Eye; (1) Input Power Cord 9 ft (2.7 m) with NEMA 6-50P Plug; (1) NEMA 6-50R Receptacle; (1) TIG Procedure Guide; (1) GTAW (TIG) Handbook; (1) K1782-1 PTA-17 150A TIG Torch with 1-Pc Cable; (1) 12 ft (3.6 m) Ultra-Flex Cable; (1) K1622-1 Twist Mate Adapter; (1) KP4722-332 2% Ceriated Tungsten 3/32 in (2.4 mm); (1) KP4750-332 Collet; (1) KP4752-332 Collet Body; (1) KP4756-7 Alumina Nozzle 7/16 in (11.1 mm); (1) KP4746-L Long Back Cap; (1) Gas Regulator with Hose; (1) K870 Foot Amptrol with 25 ft (7.6 m) Cable Assembly
- Phase: 1
- Process: TIG (GTAW)
- Voltage Output [Nom]: 75 V
- Width [Nom]: 14.5 in
Features
- Easy-to-use operator interface; select mode, polarity and weld
- AC Auto-Balance automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum
- Enable the TIG pulser to minimize material distortion from excessive heat input
- Offers outstanding stick welding capabilities with up to 5/32 in (4.0 mm) electrodes
- Experience enhanced starting, optimal arc stability, and accomplish more precise welds with our patented Micro-Start II Technology
