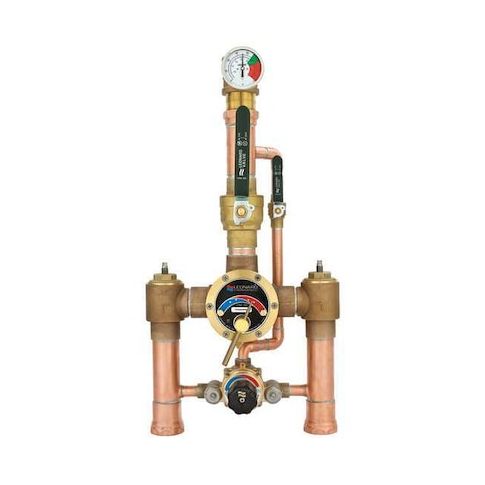

TM-2020B-LF-DT-RF Thermostatic Mixing Valve, 145 gpm, Lead Free Bronze MPN:TM-2020B-LF-DT-RF

The Leonard TM-2020B-LF-DT-RF is a high-capacity thermostatic mixing valve assembly utilized for hot water applications. It is constructed with a bronze body and NBR seals.

Flow and Pressure Specifications:

• - Flow Rate Capacity: Manages water flow from a minimum of 1 gpm up to 214 gpm.
• - Pressure Range: Operates at a minimum pressure of 30 psi and a maximum pressure of 125 psi.
• - Connections: Features 2-inch NPT connections for the hot inlet, cold inlet, and mixed water outlet.

  Temperature Regulation:

  • - Adjustable Range: Provides an outlet temperature range of 60°F to 200°F.
  • - Hot Inlet Requirements: Accommodates hot water supply temperatures between 120°F and 200°F.
  • - Cold Inlet Requirements: Accommodates cold water supply temperatures between 40°F and 85°F.
  • - Control Features: Equipped with locking temperature regulating handles and an adjustable limit stop set.

    Assembly Components:

    • - This model is supplied as a complete manifold assembly including:
      • - Monitoring: A color-coded dial thermometer and integrated temperature gauge.
      • - Shut-off and Safety: Outlet ball valve shut-offs and integral hot and cold supply check-stops.
      • - Hardware: An inlet piping manifold and a color-coded dial.



      Additional Information

      • Country of Origin: US
      • Drop Ship Item: No
      • Blind Ship Eligible: No
      • LTL Freight Required: No
      • Lead Time: Ships in 1 days
      • Minimum Order Quantity: 1
      • Unit of Measure: EA
      • Package Length: 38.20
      • Package Width: 23.00
      • Package Height: 12.70
      • Package Weight: 49.10
