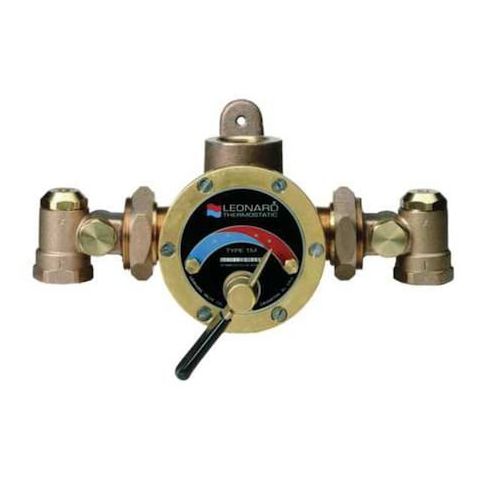

Steam and Water Mixing Valve, Brass MPN:TMS-150-CP
Steam and Water Mixing Valve, Brass
The Steam and Water Mixing Valve from Leonard Valve is a reliable and efficient solution for mixing steam and water in a variety of applications. Ideal for use in hospitals, laboratories, and other industries where precise temperature control is crucial, this thermostatic mixing valve ensures a consistent and safe water temperature range of 65-140°F. With a flow rate of 60 gpm and maximum pressure of 80 psi, it can handle demanding applications while minimizing the risk of scalding or over-heating. Its compact design and integral combination check-stops also make it a convenient and easy-to-install solution.
Top product features:
- Thermostatic mixing valve adjusts temperature of mixed water to a consistent range between 65 Degrees to 140 Degrees F
- Mixes steam and water to produce a safe and consistent temperature for use in various applications
- Includes integral combination check-stops to prevent backflow and ensure safe operation
Top product applications:
- Commercial Kitchens: For mixing hot and cold water to a precise temperature for safe drinking water dispensers.
- Public Showers: For mixing hot and cold water to a precise temperature for safe showering in public facilities.
- Medical Facilities: For mixing hot and cold water to a precise temperature for safe bathing and hygiene in medical settings.
Thermostatic Mixing Valve, Body Material Bronze, Flow Rate 60 gpm, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 1 1/4 in, Outlet Size 1 1/2 in, Temp. Range 65 Degrees to 140 Degrees F, Max. Pressure 80 psi, Overall Height 7 1/2 in, Overall Width 12 in, Inlet Temperature (Hot) 120 Degrees to 200 Degrees F, Includes Integral Combination Check-stops
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 8.80
- Package Height: 9.00
- Package Weight: 16.10
Product info last updated on February 12, 2026 3:39pm UTC
Category: Pipes, Valves and Fittings
