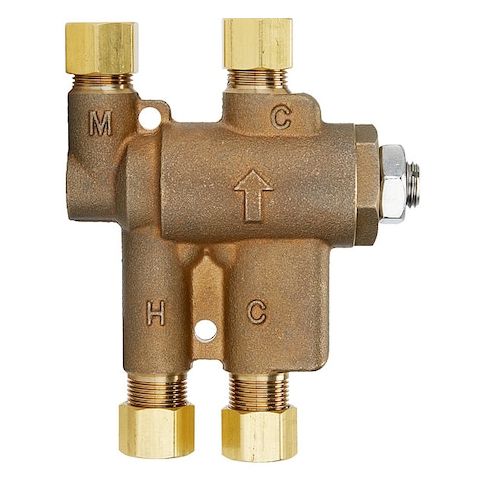

Point Of Use Mixing Valve, 3/8 in Inlet MPN:170D-LF
Point Of Use Mixing Valve, 3/8 in Inlet
This Point of Use Mixing Valve is a thermostatic mixing valve designed for use in various applications, including single and double faucets, where precise temperature control is required. Its compact design, measuring 3 3/4 inches in height and width, makes it ideal for installation in tight spaces. The valve's ability to mix water temperatures between 95°F and 120°F provides a comfortable and safe drinking water experience. Compliant with ASSE 1070 standards and lead-free, this valve is suitable for use in commercial and residential settings, offering a reliable and efficient solution for water temperature regulation.
Top product features:
- Thermostatic mixing valve adjusts water temperature to a consistent and safe level between 95 Degrees to 120 Degrees F.
- Mixes water flow rate between 0.25 to 4 gpm to accommodate various user needs.
- Protects against scalding by regulating inlet temperatures between 33 Degrees to 80 Degrees F (cold) and 120 Degrees to 180 Degrees F (hot).
Top product applications:
- Residential Bathroom Faucets
- Commercial Kitchen Sinks
- Medical Facilities Showers
Thermostatic Mixing Valve, Body Material Bronze, Flow Rate 0.25 to 4 gpm, Inlet Type Compression, Outlet Type Compression, Inlet Size 3/8 in, Outlet Size 3/8 in, Temp. Range 95 Degrees to 120 Degrees F, Max. Pressure 125 psi, Overall Height 3 3/4 in, Overall Width 3 3/4 in, Inlet Temperature (Cold) 33 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Sensor, Single/Double Faucet, Standards ASSE 1070, Compliance Lead Free
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 1.05
Product info last updated on February 8, 2026 8:36am UTC
Category: Pipes, Valves and Fittings
