SS, Straight, 1/2"BSPTx3/8"BSPT MPN:1821 21 17

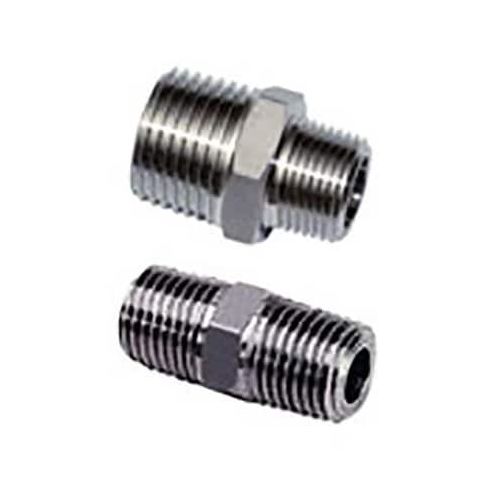

The LEGRIS 1821 21 17 stainless steel adapter fitting provides a reliable and compact connection solution for process or plumbing systems. Constructed from 316L stainless steel, it offers excellent corrosion resistance and is suitable for use with air and non-potable water within specified pressure limits. This reducing adapter features a 1/2 inch nominal pipe size on one end and a 3/8 inch nominal pipe size on the other, making it ideal for connecting components with different connection sizes and types. Its compact design and high-pressure rating make it perfect for use in a variety of applications, including industrial and commercial settings.
Top product features:
- Material: 316L stainless steel for corrosion resistance.
- Configuration: Unequal adapter with reducing size from 1/2 inch (Side A) to 3/8 inch (Side B).
- Connection types: Male BSPT threaded connections on both ends.
Top product applications:
- Process systems
- Plumbing systems
- Air systems
The LEGRIS - 1821 21 17 is a stainless steel adapter fitting constructed from 316L stainless steel, rated to connect components with specified connection sizes and types. It features a male BSPT connection on both ends, with a 1/2 inch nominal pipe size on Side A and a 3/8 inch nominal pipe size on Side B, making it a reducing adapter. The fitting is rated for operation up to 2,176 psi and is suitable for use with air and non-potable water within specified pressure limits. Its overall length is 1 1/4 inches, providing a compact connection solution for process or plumbing systems.
Key Features:
- - Material: 316L stainless steel for corrosion resistance.
- - Configuration: Unequal adapter with reducing size from 1/2 inch (Side A) to 3/8 inch (Side B).
- - Connection types: Male BSPT threaded connections on both ends.
- - Maximum operating and steam pressure rating: 2,176 psi.
- - Application: Rated for use with air and non-potable water within specified pressure limits.
- - Hex size: 22 mm wrench flats for installation.
- - Overall length: 1 1/4 inches to fit compact pipe arrangements.
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 1.50
- Package Weight: 0.18
