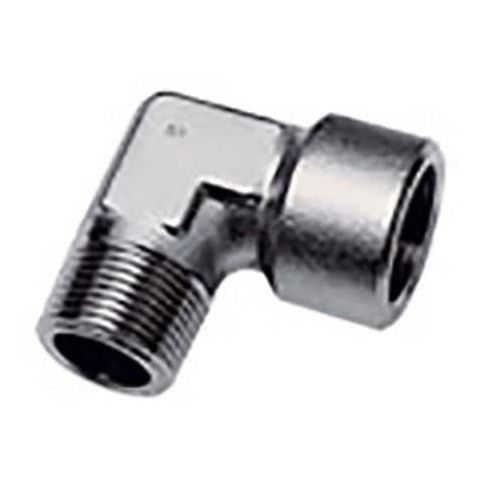

90° Street Elbow, 316L Stainless Steel, 1 in x 1 in, Female BSPP x Male BSPT MPN:1844 34 34
The Legris 1844 34 34 90° Street Elbow is a high-performance fitting designed for connecting pipes at a right angle in various applications. Made from 316L stainless steel, it offers exceptional corrosion resistance, ensuring reliable performance in air and non-potable water systems. With a pressure rating of up to 2,176 psi, this fitting is suitable for use in demanding environments. Its compact design and corrosion-resistant properties make it an ideal choice for applications such as HVAC systems, water treatment facilities, and industrial processes, where a secure and reliable connection is critical.
Top product features:
- The fitting provides a pressure rating up to 2,176 psi.
- The fitting is constructed from 316L stainless steel with corrosion resistance properties.
- The fitting provides a 90-degree flow direction change.
Top product applications:
- Air systems
- Non-potable water systems
- Steam systems
The LEGRIS 1844 34 34 connects two pipes at a right angle within specified installation parameters. Made from 316L stainless steel with corrosion resistance properties, it features female and male threaded ends, with nominal pipe sizes of 1 inch on both sides. Crafted from 316L stainless steel, it offers high corrosion resistance and is suitable for applications involving air and non-potable water systems. The fitting provides a pressure rating up to 2,176 psi and a maximum steam pressure of 2,176 psi, with an overall length of approximately 1 15/16 inches.
Key Features:
- - Fitting Side A has internal BSPP threading with dimensions compatible with standard male BSPP fittings.
- - Fitting Side A is compatible with 1-inch nominal pipe sizes
- - Fitting Side A has BSPP threading according to British Standard
- - Fitting Side B has external BSPT threading compatible with standard female BSPT fittings.
- - Fitting Side B is compatible with 1-inch nominal pipe sizes
- - Fitting Side B has BSPT threading according to British Standard
- - Threads do not include factory-applied sealant
- - Seal components are not included
- - Constructed from 316L stainless steel with corrosion resistance properties
- - Rated for operation at pressures up to 2,176 psi
- - Overall length is approximately 1 15/16 inches
- - Intended for use in air and non-potable water systems
- - Provides a 90-degree flow direction change with a corrosion-resistant design.
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.70
- Package Height: 2.50
- Package Weight: 0.77
