SS, 90Elbow, 1/4"BSPPx1/4"BSPT MPN:1844 13 13

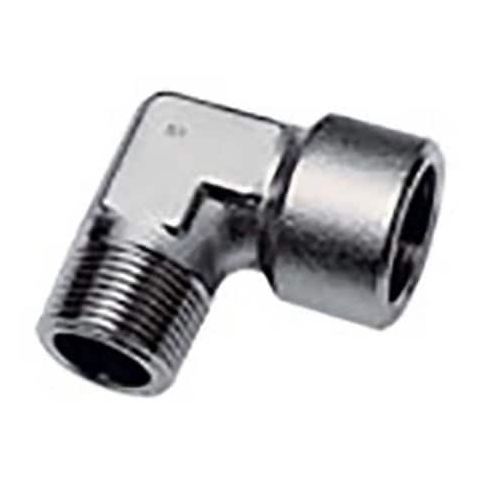

The LEGRIS - 1844 13 13 is a stainless steel 90-degree elbow fitting designed to connect two pipes at a right angle. It is suitable for conveying air and non-potable water and is constructed from corrosion-resistant material and rated for specified pressure ranges. This fitting can be utilized in various piping systems, supporting specific pressure ranges within system parameters. It features a female connection on one end and a male connection on the other, with specific threading types, enabling reliable attachment within compatible systems.

• - Application: Compatible with air and non-potable water systems.
• - Fitting Side A Gender: Female — features internal threads for mating with male pipes or fittings.
• - Fitting Side A Nominal Pipe Size: 1/4 in — designed for pipes with a 1/4 inch nominal size.
• - Fitting Side A Type: BSPP — uses British Standard Pipe Parallel thread connection.
• - Fitting Side B Gender: Male — features external threads for connection to female fittings.
• - Fitting Side B Nominal Pipe Size: 1/4 in — designed for 1/4 inch nominal pipe size.
• - Fitting Side B Type: BSPT — uses British Standard Pipe Taper thread connection.
• - Includes Pre-Applied Thread Sealant: No — does not come with factory-applied sealant on threads.
• - Includes Seal: No — does not include an additional sealing component.
• - Material Grade: 316L — made from low-carbon stainless steel alloy with corrosion-resistant properties.
• - Max. Steam Pressure: 2,176 psi — rated to withstand high-pressure steam conditions.
• - Overall Length: 1 inch — measured from end to end of the fitting.
