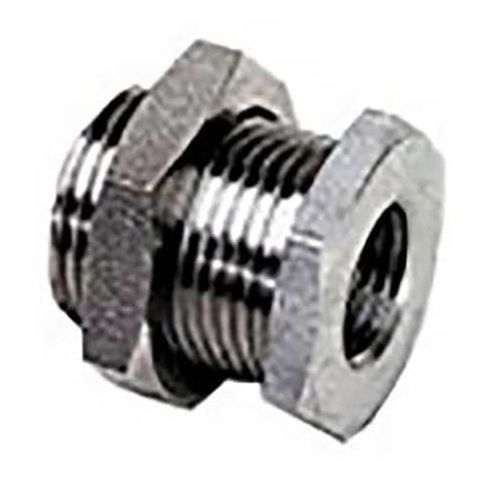

StainlessSteel, Straight, 1/2"NPTx1/2"NPT MPN:1871 00 22
The Legris 1871 00 22 is a high-quality stainless steel bulkhead coupling designed for joining pipes or tubes in a straight line. Ideal for use in air and non-potable water applications, this coupling features a female NPT connection on one side and a male NPT connection on the other, both sized at 1/2 inch nominal pipe size. Its compact 1 3/8 inch length and 32 mm hexagonal wrenching surface make installation easy. Rated for maximum operating pressure up to 2,176 psi, this coupling is perfect for a variety of industries, including HVAC, water treatment, and chemical processing.
Top product features:
- 316L stainless steel construction provides corrosion resistance and durability.
- The female NPT connection on Side A and male NPT connection on Side B enable secure and leak-tight connections to pipes or tubes.
- The hexagonal wrenching surface with a 32 mm dimension facilitates easy installation and tightening of the coupling.
Top product applications:
- Air
- Non-potable water
- Steam
The LEGRIS - 1871 00 22 is a stainless steel bulkhead coupling designed to join two pipes or tubes in a straight line, creating a continuous flow path. Material: 316L stainless steel. Applications: Air
- Non-potable water. This coupling features a female NPT connection on Side A and a male NPT connection on Side B, both sized at 1/2 inch nominal pipe size. Its overall length measures 1 3/8 inches, and the hexagonal wrenching surface has a 32 mm dimension for installation purposes. Rated for maximum operating pressure up to 2,176 psi
- rated for steam pressure up to 2,176 psi.
Key Features:
- - Material: 316L stainless steel
- - Applications: Air
- Non-potable water
- - Fitting Side A: Female NPT, 1/2 inch nominal pipe size
- - Fitting Side B: Male NPT, 1/2 inch nominal pipe size
- - Overall Length: 1 3/8 inches
- - Hex Size: 32 mm
- - Rated for maximum operating pressure up to 2,176 psi
- - Rated for steam pressure up to 2,176 psi
- - Does not include pre-applied thread sealant or seal
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.50
- Package Height: 1.40
- Package Weight: 0.25
