1/4" FNPT Stainless Steel Spring Check Valve PK2 MPN:4895 14 14
Free Shipping
In Stock
This 1/4in FNPT Stainless Steel Spring Check Valve from Legris is a reliable and durable solution for various industrial applications. Its single flow design and inline spring mechanism ensure smooth operation and prevent backflow. Constructed from 316 stainless steel, it offers excellent corrosion resistance and can withstand extreme temperatures from -4°F to 356°F. Suitable for use in horizontal or vertical orientations, this valve is ideal for applications in water treatment, chemical processing, and pharmaceuticals, where high water pressure and precision control are required. Its compact size and low cracking pressure make it an efficient choice for a wide range of industries.
Top product features:
- Stainless Steel construction for resistance to corrosion
- Spring-loaded design allows for automatic shut-off in case of backflow
- FKM seals provide a tight seal up to 356°F
Top product applications:
- Cooling systems
- Steam trap systems
- Water treatment systems

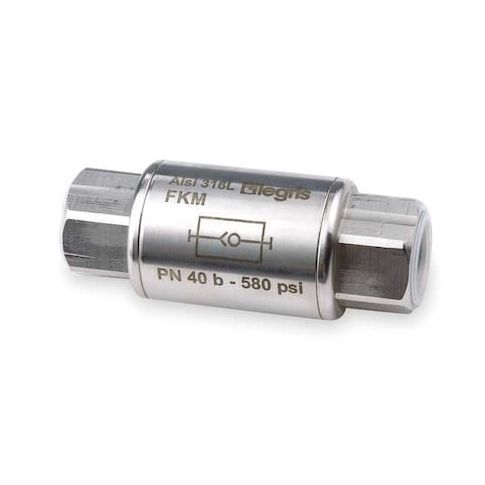

LEGRIS 4895 series check valve with an inline spring design for directional flow control in compatible fluid system applications. This 1/4 in. valve features FNPT x FNPT female NPT connections, a 316L stainless steel body, and FKM seal and seat materials. It opens at 3.6 psi to allow forward flow, and the spring check mechanism closes when reverse flow conditions are present. The valve can be mounted in horizontal or vertical orientations.
Key Features:
- Check valve type: Inline spring, single-flow design
- Connection size and style: 1/4 in. FNPT x FNPT
- female connections on both ends
- Body material: 316L stainless steel
- Spring and check mechanism material: 302 stainless steel
- Check mechanism: Inline spring
- Seal and seat material: FKM
- Cracking pressure: 3.6 psi
- Maximum operating pressure: 580 psi
- Operating temperature range: -4 degrees F to 356 degrees F
- Mounting orientation: Horizontal or vertical
- Valve body style: Inline
- Overall length: 2.13 in.
- Standards: DI: 2002/95/EC (RoHS), DI: 97/23/EC (PED), RG: 1907/2006 (REACH)
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.50
- Package Width: 1.30
- Package Height: 2.40
- Package Weight: 0.35
