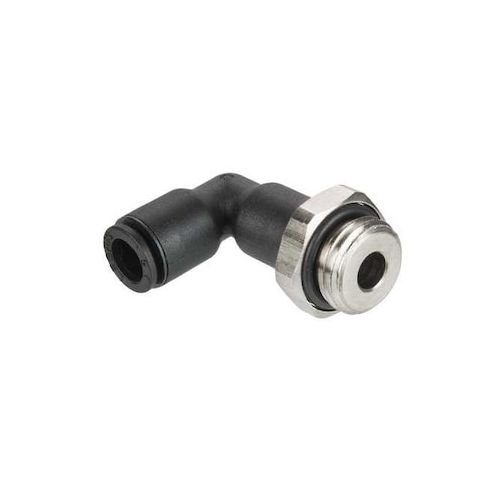

Elbow, Nylon, BSPP 1/4 mm, Push-Fit 6 mm MPN:3169 06 13
Elbow, Nylon, BSPP 1/4 mm, Push-Fit 6 mm
This Push-Fit Elbow Fitting from Legris is designed for air applications, featuring a push-to-connect connection type on one side and a BSPP connection type on the other. Constructed from fiberglass-reinforced nylon, it offers durability and resistance to high operating pressures of up to 20 barg and temperatures up to 176°F. The elbow fitting is ideal for use in pneumatic systems, compressed air, and gas applications, providing a secure and leak-free connection. Its compact size and lightweight design make it easy to install and maintain, making it a reliable choice for a variety of industries, including manufacturing and engineering.
Top product features:
- Pre-applied thread sealant provides a secure and leak-free connection.
- Push-to-Connect design allows for easy and tool-free connection to the fitting.
- Fiberglass-reinforced nylon construction provides high strength and durability.
Top product applications:
- Air
- Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type BSPP, Fitting Side A Pipe Size 6 mm, Fitting Side B Tube Outer Diameter 6 mm
- Maximum Operating Pressure 20 barg, Maximum Operating Temperature 176 Degrees F
Push-Fit Elbow Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type BSPP, Fitting Side A Pipe Size 6 mm, Fitting Side B Tube Outer Diameter 6 mm, Fitting Material Fiberglass-Reinforced Nylon, Fitting Thread Size Not Applicable, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 20 barg, Maximum Operating Temperature 176 Degrees F
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 1.00
- Package Height: 0.70
- Package Weight: 0.04
Product info last updated on February 26, 2026 5:58am UTC
Category: Pipes, Valves and Fittings
