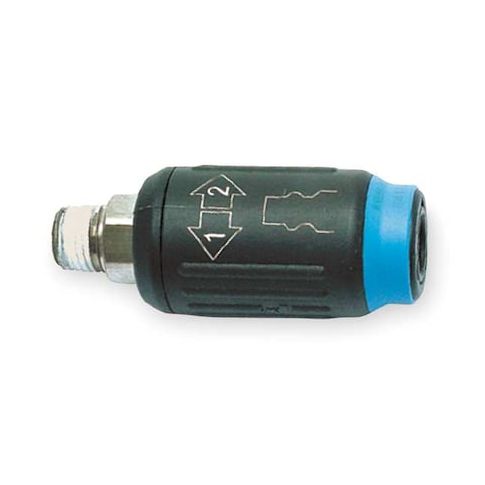

Coupler, 1/4, Glass Reinforced Nylon MPN:9405U06 18

• The LEGRIS - 9405U06 18 is a hose coupling for pneumatic equipment and air tools. It provides connection/disconnection using a safety vent locking mechanism, providing a leak-resistant seal for air lines. Constructed from polymer and featuring PTFE seals, this coupling is rated for operation in the temperature range of -4°F to 140°F and rated flow rate: up to 1,250 L/min (as specified). A ball valve is included for airflow control during coupling operation.

  Key Features:


  • - Connection Type: 3/8"-18 male NPT thread.
  • - Hose Fitting Size: 3/8 in
  • Coupling Size and Body Size: 1/4 in.
  • - Coupling Component: Socket with safety vent locking type.
  • - Color: Black polymer construction.
  • - Rated Maximum Working Pressure: 232 psi at 70°F ambient temperature.
  • - Overall Length: 3 in with a maximum outside diameter of 31.5 mm.
  • - Seal Material: PTFE.
  • - Valve Included: Yes, ball valve type.
  • - Is compatible with automotive equipment, blowguns, and pneumatic tools when used within the stated connection size, pressure, and temperature ratings.
  • - Interchange Standard: Industrial.
