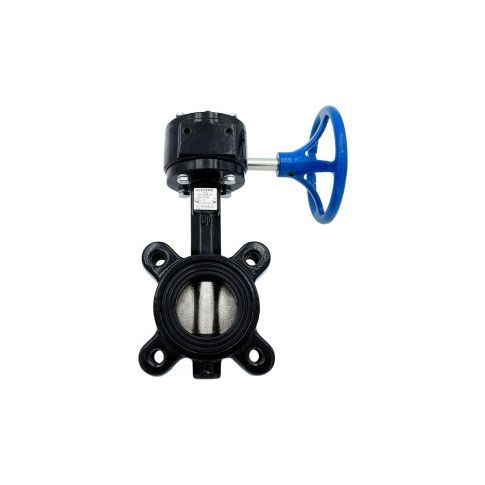

Legend Valve® T-365DI-G Butterfly Valve with EPDM Seals & Gear Operator 2-1/2" Lug 116-682

2-1/2" t-365di-g butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" ductile iron disc epdm seats epoxy coated lug body allows precise positioning between flanges tapped lugs and supported seat permit single-flange "dead-end" service extended neck will clear most piping insulation applications bi directional flow 100% factory tested rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets equipped with a pre-installed gear operator and handwheel cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility

Additional Information
