Legend Valve® T-337DI-G Butterfly Valve with BUNA Seals & Gear Operator 12" Wafer 116-499
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-51035B31

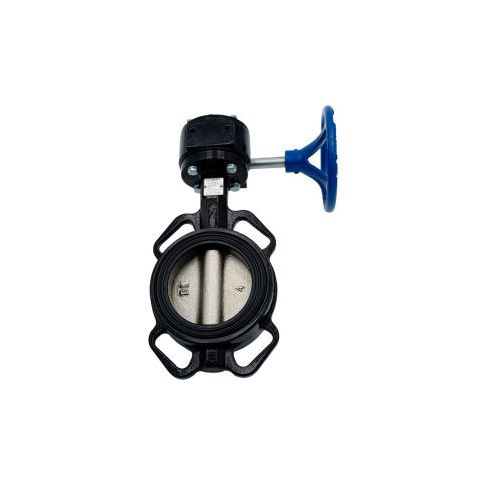

Legend Valve® T-337DI-G Butterfly Valve with BUNA Seals & Gear Operator 12" Wafer
The Legend Valve T-337DI-G Butterfly Valve is a reliable and efficient solution for various industrial applications. Suitable for use in ductile iron piping systems, this valve features a wafer-type design with a rigid phenolic-backed seat for positive bubble-tight shutoff. The epoxy-coated wafer body allows for easy positioning between flanges, while the extended neck clears most piping insulation applications. With a maximum cold working pressure of 200 psi, this valve is ideal for use in water treatment, chemical processing, and other industries where bi-directional flow is required. Its durable construction and factory testing ensure a long-lasting and trouble-free operation.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Rigid phenolic-backed seat allows positive bubble-tight shutoff.
Top product applications:
- Water treatment systems
- Pulp and paper mills
- Oil and gas industry
12" t-337di-g ductile iron wafer type butterfly valve with buna seats di disc gear operated epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid phenolic-backed seat allows positive bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cold working pressure (cwp) 200 psi special order disc options t-335di & t-337di ductile iron disc flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in an iso accredited facility manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593
Additional Information
- UPC: 662545124681
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 12.00
- Package Width: 16.00
- Package Height: 29.00
- Package Weight: 81.00
Product info last updated on May 16, 2025 3:09am UTC
Category: Valves
