Legend Valve® T-335DI-G Butterfly Valve with EPDM Seals & Gear Operator 10" Wafer 116-488
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-51076B31

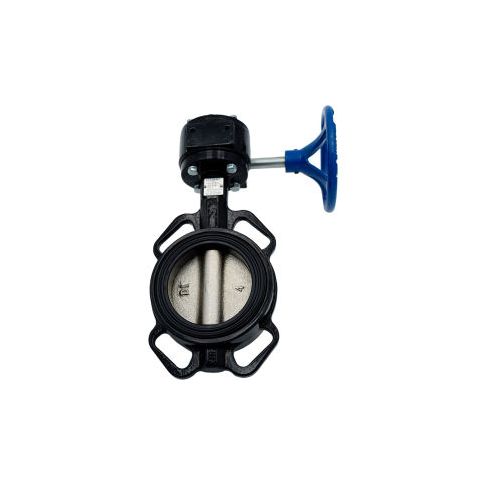

Legend Valve® T-335DI-G Butterfly Valve with EPDM Seals & Gear Operator 10" Wafer
The Legend Valve T-335DI-G Butterfly Valve is a reliable and efficient solution for various industrial applications. Its epoxy-coated wafer body allows for easy positioning between flanges, while the extended neck clears most piping insulation. The valve features bi-directional flow and 100% factory testing, ensuring a bubble-tight shutoff. Suitable for use in cold working pressure (CWP) applications up to 200 psi, this valve is ideal for water treatment, chemical processing, and other industries where precise flow control is crucial. Its durable design and easy operation make it a valuable addition to any facility.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges
- Extended neck will clear most piping insulation applications
- Rigid phenolic-backed seat allows positive bubble-tight shutoff
Top product applications:
- Wastewater treatment plants
- Industrial water treatment systems
- Potable water distribution systems
10" t-335di-g butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested ductile iron disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets equipped with a pre-installed gear operator and handwheel cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545124582
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 12.00
- Package Width: 17.00
- Package Height: 28.00
- Package Weight: 60.35
Product info last updated on May 16, 2025 3:09am UTC
Category: Valves
