Legend Valve® T-335DI-G Butterfly Valve with EPDM Seals & Gear Operator 6" Wafer 116-486
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-50976B31

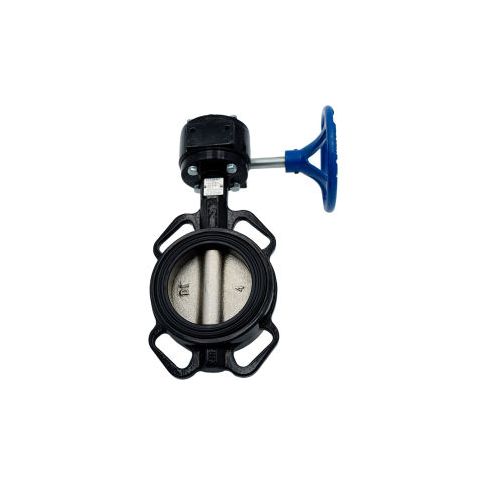

Legend Valve® T-335DI-G Butterfly Valve with EPDM Seals & Gear Operator 6" Wafer
The Legend Valve T-335DI-G Butterfly Valve is a reliable and efficient solution for various industrial applications. This 6-inch wafer valve features a ductile iron disc and EPDM seats for positive shut-off, making it ideal for use in water treatment, chemical processing, and HVAC systems. The epoxy-coated wafer body allows for easy positioning between flanges, while the extended neck clears most piping insulation. The valve's bi-directional flow and 100% factory testing ensure consistent performance. Suitable for cold working pressures up to 200 psi, this valve is a great choice for applications requiring reliable, low-maintenance shut-off.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Rigid phenolic-backed seat allows positive bubble-tight shutoff.
Top product applications:
- Water treatment plants
- Chemical processing plants
- Pulp and paper mills
6" t-335di-g butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested ductile iron disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets equipped with a pre-installed gear operator and handwheel cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545124568
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 6.25
- Package Width: 10.00
- Package Height: 16.00
- Package Weight: 22.60
Product info last updated on May 16, 2025 3:09am UTC
Category: Valves
