Legend Valve® T-335DI-G Butterfly Valve with EPDM Seals & Gear Operator 2-1/2" Wafer 116-482
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-50937B31

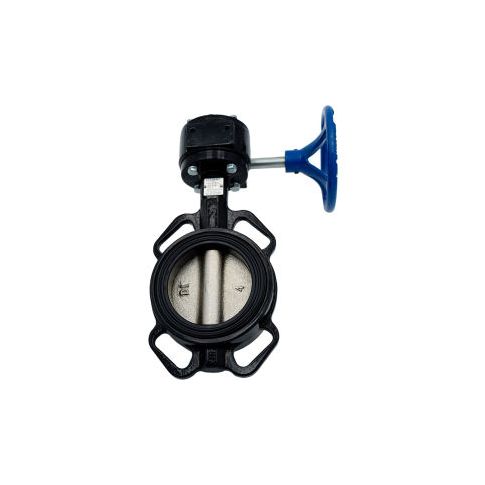

Legend Valve® T-335DI-G Butterfly Valve with EPDM Seals & Gear Operator 2-1/2" Wafer
The Legend Valve T-335DI-G Butterfly Valve is a reliable and efficient solution for various industrial applications, including water treatment, chemical processing, and HVAC systems. Its epoxy-coated wafer body allows for easy positioning between flanges, while the extended neck clears most piping insulation. The valve features bi-directional flow, 100% factory testing, and a rigid phenolic-backed seat for positive bubble-tight shutoff. The gear operator and handwheel make it easy to operate, and the valve is designed to withstand cold working pressure of 200 psi. Suitable for applications requiring ANSI Class 125/150 flange dimensions, this valve is a trusted choice for many industries.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Rigid phenolic-backed seat allows positive bubble-tight shutoff.
Top product applications:
- Water treatment plants
- Pulp and paper mills
- Chemical processing plants
2-1/2" t-335di-g butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested ductile iron disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets equipped with a pre-installed gear operator and handwheel cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545124520
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 6.25
- Package Width: 10.00
- Package Height: 14.00
- Package Weight: 13.20
Product info last updated on May 16, 2025 3:09am UTC
Category: Valves
