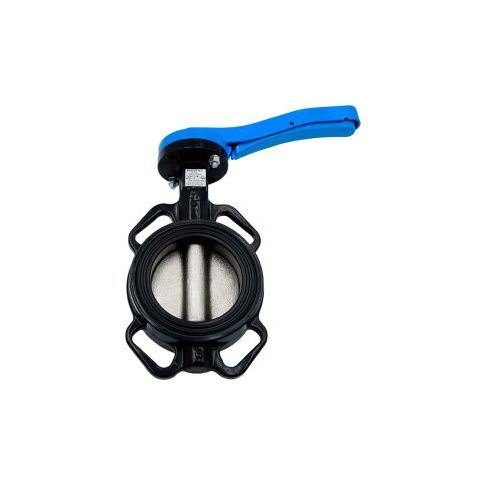

Legend Valve® T-337DI Butterfly Valve with BUNA Seals & 10 Position Handle 10" Wafer 116-478
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-50945B31
Legend Valve® T-337DI Butterfly Valve with BUNA Seals & 10 Position Handle 10" Wafer
The Legend Valve T-337DI Butterfly Valve is a reliable and efficient solution for various applications, including municipal water treatment, chemical processing, and HVAC systems. Its 10-position handle provides precise control over flow, while the rigid phenolic-backed seat ensures a bubble-tight shutoff. The valve's epoxy-coated wafer body and extended neck design simplify installation and reduce maintenance. Suitable for bi-directional flow, this valve can handle cold working pressures of up to 200 psi, making it an ideal choice for applications requiring precise control and reliable shut-off. Its durable construction and easy operation make it a valuable addition to any system.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Rigid phenolic-backed seat allows positive bubble-tight shutoff.
Top product applications:
- Air conditioning systems
- Water treatment plants
- Chemical processing plants
10" t-337di ductile iron wafer type butterfly valve with buna seats di disc 10-position handle. Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid phenolic-backed seat allows positive bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Heavy-duty lockable ten-position lever handle. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cold working pressure (cwp) 200 psi special order disc options t-335di & t-337di ductile iron disc flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in an iso accredited facility manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593
Additional Information
- UPC: 662545124490
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 6.00
- Package Width: 22.00
- Package Height: 24.00
- Package Weight: 42.95
Product info last updated on May 16, 2025 3:09am UTC
Category: Valves
