Legend Valve® T-337DI Butterfly Valve with BUNA Seals & 10 Position Handle 5" Wafer 116-475
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-50920B31

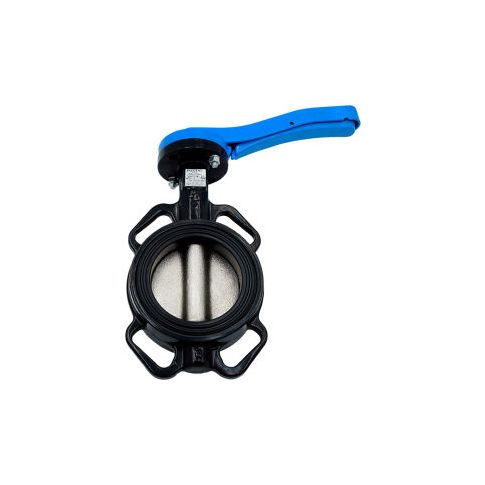

Legend Valve® T-337DI Butterfly Valve with BUNA Seals & 10 Position Handle 5" Wafer
The Legend Valve T-337DI Butterfly Valve is a reliable and efficient solution for various industrial applications. Suitable for ductile iron piping systems, this wafer type valve features a rigid phenolic-backed seat for positive bubble-tight shutoff and a raised seat face that eliminates the need for companion flange gaskets. The 10-position handle provides easy operation, while the epoxy coated wafer body ensures easy positioning between flanges. Ideal for applications such as water treatment, chemical processing, and HVAC systems, this valve offers a durable and leak-free solution for bi-directional flow. Its heavy-duty construction and factory testing ensure a long-lasting performance.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Rigid phenolic-backed seat allows positive bubble-tight shutoff.
Top product applications:
- Water treatment plants
- Pumping stations
- Oil and gas industry applications
5" t-337di ductile iron wafer type butterfly valve with buna seats di disc 10-position handle. Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid phenolic-backed seat allows positive bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Heavy-duty lockable ten-position lever handle. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cold working pressure (cwp) 200 psi special order disc options t-335di & t-337di ductile iron disc flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in an iso accredited facility manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593
Additional Information
- UPC: 662545124469
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 4.00
- Package Width: 13.00
- Package Height: 16.00
- Package Weight: 14.05
Product info last updated on May 18, 2025 3:25am UTC
Category: Valves
