Legend Valve® T-337DI Butterfly Valve with BUNA Seals & 10 Position Handle 2" Wafer 116-471
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-51047B31

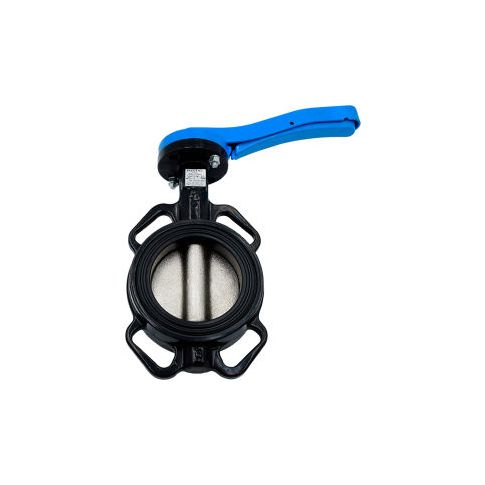

Legend Valve® T-337DI Butterfly Valve with BUNA Seals & 10 Position Handle 2" Wafer
The Legend Valve T-337DI Butterfly Valve is a reliable and efficient solution for various applications, including water treatment, chemical processing, and HVAC systems. Its ductile iron wafer body and BUNA seals provide a rigid phenolic-backed seat for positive bubble-tight shutoff, ensuring minimal leakage and maximum safety. The 10-position handle allows for easy operation and maintenance, while the epoxy-coated body and extended neck facilitate easy positioning and clearance of piping insulation. With a cold working pressure of 200 psi, this valve is suitable for a wide range of industries and applications, including those requiring bi-directional flow.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Heavy-duty lockable ten-position lever handle.
Top product applications:
- Water Treatment Plants
- Pulp and Paper Mills
- Chemical Processing Plants
2" t-337di ductile iron wafer type butterfly valve with buna seats di disc 10-position handle. Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid phenolic-backed seat allows positive bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Heavy-duty lockable ten-position lever handle. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cold working pressure (cwp) 200 psi special order disc options t-335di & t-337di ductile iron disc flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in an iso accredited facility manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593
Additional Information
- UPC: 662545124421
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 4.00
- Package Width: 10.00
- Package Height: 12.00
- Package Weight: 6.25
Product info last updated on May 18, 2025 3:25am UTC
Category: Valves
