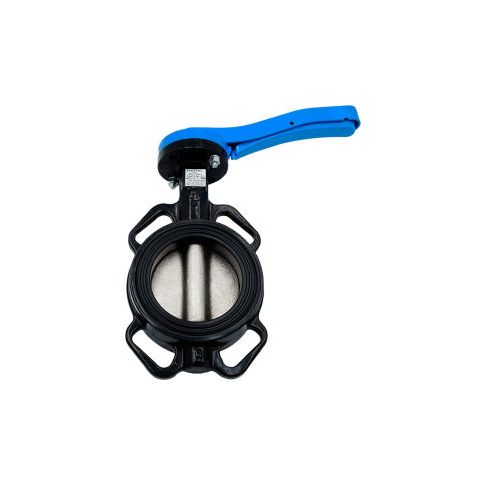

Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 10" Wafer 116-458
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-51022B31
Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 10" Wafer
The Legend Valve T-335DI Butterfly Valve is a reliable and efficient solution for various industrial applications. Its epoxy-coated wafer body allows for easy positioning between flanges, while the extended neck clears most piping insulation. The valve features bi-directional flow, 100% factory testing, and a ductile iron disc with EPDM seats for positive bubble-tight shutoff. Its heavy-duty, lockable 10-position lever handle ensures secure operation. Suitable for applications such as water treatment, chemical processing, and HVAC systems, this valve meets ANSI, API, and AWWA standards, providing a durable and long-lasting solution for demanding environments.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges
- Extended neck will clear most piping insulation applications
- Rigid phenolic-backed seat allows positive bubble-tight shutoff
Top product applications:
- Water Treatment Plant
- Pumping Stations
- Industrial Process Control
10" t-335di butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested ductile iron disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position lever handle cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545124407
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 6.00
- Package Width: 20.00
- Package Height: 22.00
- Package Weight: 42.70
Product info last updated on May 16, 2025 3:09am UTC
Category: Valves
