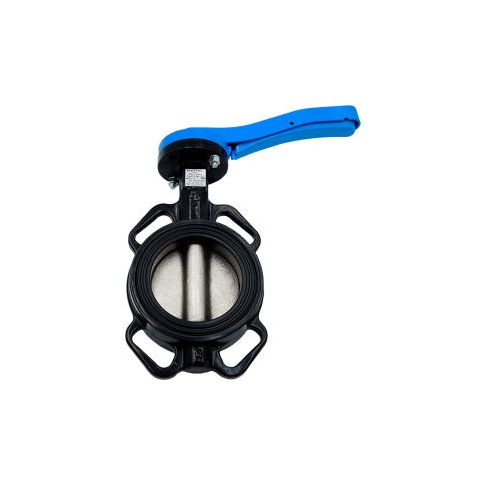

Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 5" Wafer 116-455
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-51003B31
Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 5" Wafer
The Legend Valve T-335DI Butterfly Valve is a reliable and versatile solution for various industrial applications. Its epoxy-coated wafer body allows for easy positioning between flanges, while the extended neck clears most piping insulation. This valve features bi-directional flow, 100% factory testing, and a rigid phenolic-backed seat for positive bubble-tight shutoff. The raised seat face eliminates the need for companion flange gaskets, and the heavy-duty lockable ten-position lever handle provides secure operation. Suitable for applications such as water treatment, chemical processing, and HVAC systems, this valve is designed to meet ANSI standards and is manufactured in an ISO-accredited facility.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges
- Extended neck will clear most piping insulation applications
- Heavy-duty lockable ten-position lever handle
Top product applications:
- Water Treatment Plants
- Wastewater Treatment Facilities
- Pulp and Paper Mills
5" t-335di butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested ductile iron disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position lever handle cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545124377
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 4.00
- Package Width: 12.00
- Package Height: 16.00
- Package Weight: 13.80
Product info last updated on May 16, 2025 3:09am UTC
Category: Valves
