Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 3" Wafer 116-453
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-50965B31

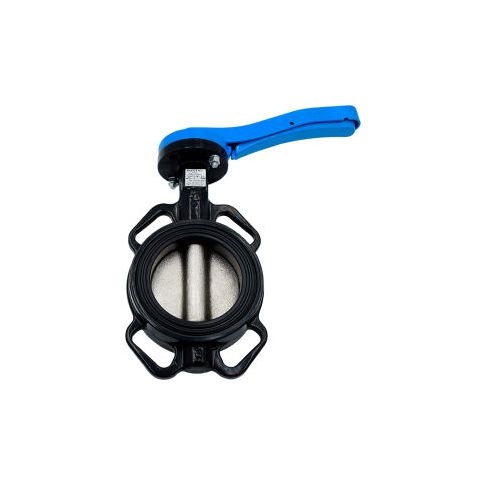

Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 3" Wafer
The Legend Valve T-335DI Butterfly Valve is a reliable and efficient solution for various industrial applications. Its epoxy-coated wafer body allows for easy positioning between flanges, making it ideal for applications where space is limited. The valve's bi-directional flow and 100% factory testing ensure consistent performance, while the ductile iron disc and EPDM seats provide a positive bubble-tight shutoff. Suitable for use in piping insulation applications, the valve's raised seat face eliminates the need for companion flange gaskets, reducing maintenance and increasing efficiency. Perfect for use in water treatment, chemical processing, and other industries where precise control is crucial.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Rigid phenolic-backed seat allows positive bubble-tight shutoff.
Top product applications:
- Piping insulation applications
- Bi-directional flow applications
- Cold water supply systems
3" t-335di butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested ductile iron disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position lever handle cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545124353
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 4.00
- Package Width: 10.00
- Package Height: 14.00
- Package Weight: 8.10
Product info last updated on May 18, 2025 3:25am UTC
Category: Valves
