Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 2-1/2" Wafer 116-452
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-50964B31

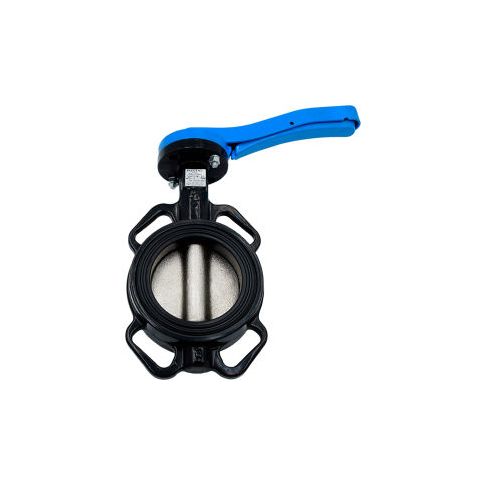

Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 2-1/2" Wafer
The Legend Valve T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle is a reliable and efficient solution for various applications. Suitable for bi-directional flow, this valve features a ductile iron disc and rigid phenolic-backed seat for positive bubble-tight shutoff. Its epoxy-coated wafer body allows for easy positioning between flanges, making it ideal for piping insulation applications. The valve's heavy-duty, lockable handle ensures secure operation, and its ANSI-compliant flange dimensions meet industry standards. With a cold working pressure of 200 psi, this valve is perfect for use in various industries, including water treatment, chemical processing, and more.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Rigid phenolic-backed seat allows positive bubble-tight shutoff.
Top product applications:
- Water Treatment Plants
- Wastewater Treatment Plants
- Pulp and Paper Mills
2-1/2" t-335di butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested ductile iron disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position lever handle cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545124346
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 4.00
- Package Width: 10.00
- Package Height: 12.00
- Package Weight: 6.30
Product info last updated on May 18, 2025 3:25am UTC
Category: Valves
