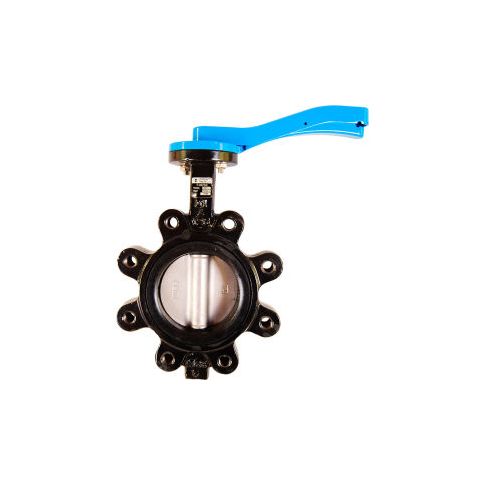

Legend Valve® T-367SS Butterfly Valve with BUNA Seals & 10 Position Handle 2-1/2" Lug 116-632

2-1/2" t-367ss ductile iron lug-type butterfly valve epoxy coated lug body allows precise positioning between flanges. Tapped lugs and supported seat permit single-flange "dead-end" service. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid phenolic-backed seat allows positive bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Heavy-duty lockable ten-position handle features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cold working pressure (cwp) 200 psi ductile iron disc buna seal 316 stainless steel disc flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in an iso accredited facility manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593

Additional Information
